1738C SL002

Active

ALPHA WIRE

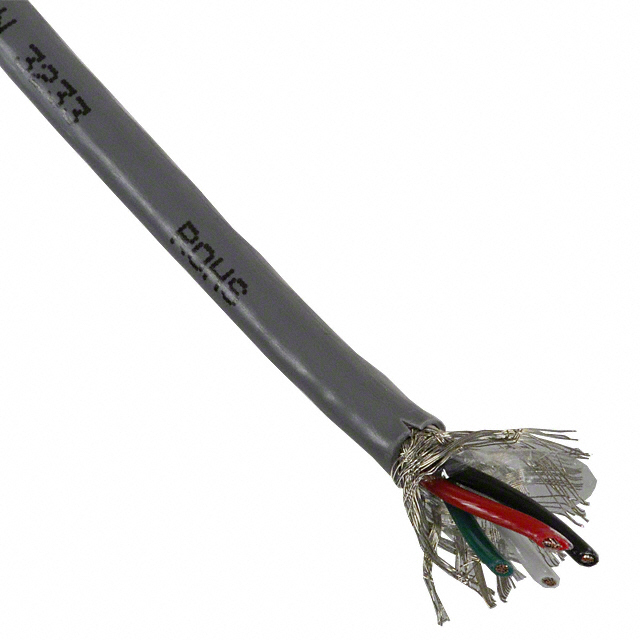

CABLE 4CON 22AWG SLATE SHLD 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4CON 22AWG SLATE SHLD 500'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1738C SL002	1738C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	5.46 mm	5.46 mm
Jacket (Insulation) Diameter [diameter]	0.215 in	0.215 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length [x]	500 '	100 - 500 ft
Length [x]	152.4 m	30.5 - 152.4 m
Number of Conductors	4	4
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	75 %	75 %
Shield Material	Copper, Bare	Copper, Bare
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 4 CONDUCTOR, 22 AWG, 0.357 MM², 100 FT, 30.5 M

Part	Wire Gauge	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Length [x]	Length [x]	Shield Coverage	Shield Type	Number of Conductors	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Cable Type	Jacket (Insulation) Material
ALPHA WIRE 1738C SL005	22 AWG	Communication, Control	-20 C	80 C	Poly-Vinyl Chloride (PVC)	0.02 in	0.508 mm	300 V	7	30 AWG	Copper, Tinned	30.5 m	100 ft	75 %	Braid	4	Copper, Bare	5.46 mm	0.215 in	Slate	Multi-Conductor	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 1738C SL002	22 AWG	Communication, Control	-20 C	80 C	Poly-Vinyl Chloride (PVC)	0.02 in	0.508 mm	300 V	7	30 AWG	Copper, Tinned	152.4 m	500 '	75 %	Braid	4	Copper, Bare	5.46 mm	0.215 in	Slate	Multi-Conductor	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1377.85

General part information

4 Conductor Multi-Conductor Cable Slate 22 AWG Braid 500.0' (152.4m)
