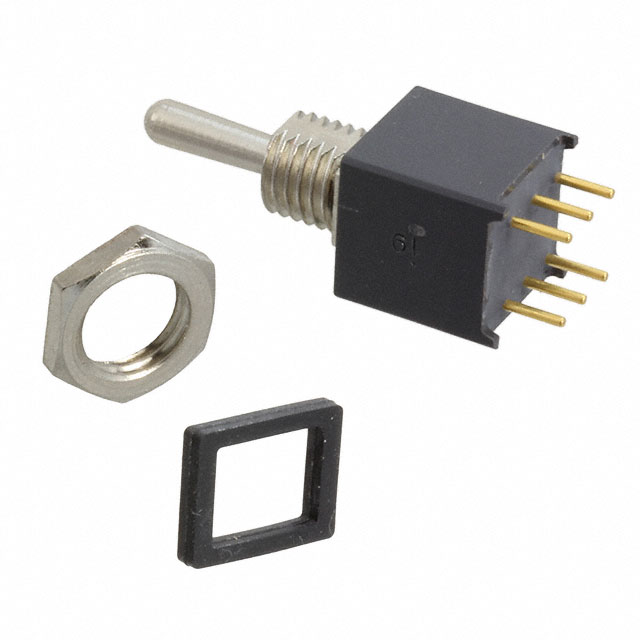

B13A1P

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Technical Specifications

Parameters and characteristics for this part

Specification	B13A1P

Actuator Length [x]	8 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	M6 x 0.75
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6 mm
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Actuator Length [x]	Voltage Rating - AC	Switch Function	Actuator Type	Circuit	Actuator Material	Illumination	Electrical Life	Panel Cutout Dimensions [diameter]	Features	Current Rating (Amps)	Termination Style	Bushing Thread	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]
NKK Switches B13A1P	8 mm	28 V	On-Off-On	Standard Round	SPDT	Brass Nickel Plated	Non-Illuminated	50000 Cycles	6 mm	Epoxy Sealed Terminals	0.4 VA	PC Pin	M6 x 0.75	28 V	-30 ░C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
