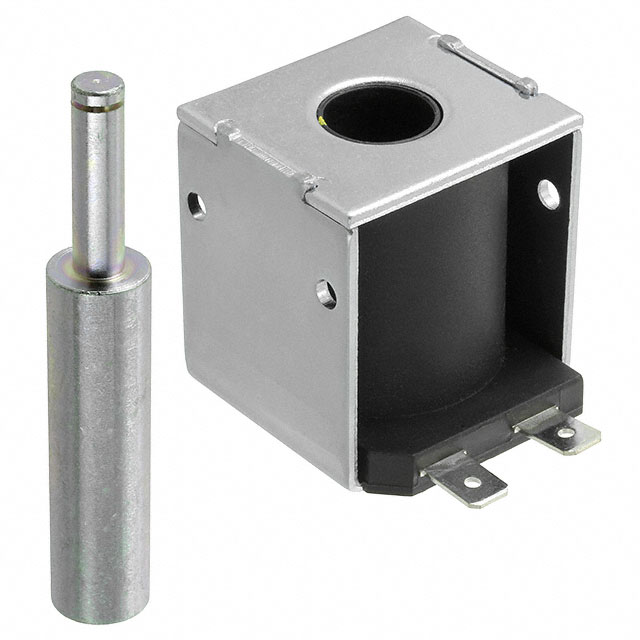

DSOL-1341-12
ActiveDelta Electronics
SOLENOID PULL INTERMITTENT 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DSOL-1341-12
ActiveDelta Electronics
SOLENOID PULL INTERMITTENT 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DSOL-1341-12 |
|---|---|
| DC Resistance (DCR) | 570 mOhm |
| Diameter - Shaft [diameter] | 6.27 mm |
| Diameter - Shaft [diameter] | 0.247 in |
| Duty Cycle | Intermittent |
| Mounting Type | Chassis Mount |
| Power (Watts) | 250 W |
| Size / Dimension [x] | 1.609 in |
| Size / Dimension [x] | 40.87 mm |
| Size / Dimension [y] | 33.33 mm |
| Size / Dimension [y] | 1.312 in |
| Size / Dimension [z] | 37.29 mm |
| Size / Dimension [z] | 1.468 in |
| Stroke Length | 0.787 in |
| Stroke Length | 20 mm |
| Technology | Electromechanical |
| Termination Style | Quick Connect |
| Type | Open Frame (Pull) |
| Voltage - Rated | 12 VAC |
| Weight | 229.97 g |
| Weight | 0.507 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 12.05 | |
| 10 | $ 11.29 | |||
| 25 | $ 10.04 | |||
| 50 | $ 9.54 | |||
| 100 | $ 9.04 | |||
Description
General part information
DSOL-1341 Series
Intermittent Duty Solenoid Open Frame (Pull) Type 0.787" (20.00mm) Stroke 12VAC Chassis Mount
