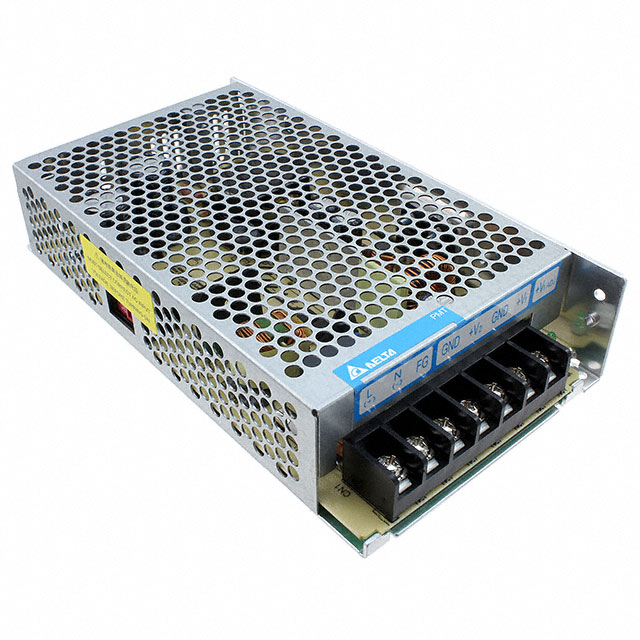

PMT-D2V100W1AA
ActiveDelta Electronics
AC/DC CONVERTER 24V 5V 100W
Deep-Dive with AI
Search across all available documentation for this part.
PMT-D2V100W1AA
ActiveDelta Electronics
AC/DC CONVERTER 24V 5V 100W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PMT-D2V100W1AA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CCC, CE, cURus, TUVgs, CB |
| Current - Output 1 | 3.5 A |
| Current - Output 2 | 3 A |
| Efficiency | 84 % |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 178 mm, 7.01 in |
| Size / Dimension [y] | 3.82 in, 97 mm |
| Size / Dimension [z] | 1.5 ", 38 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 132 VAC, 264 VAC |
| Voltage - Input [Min] | 176 VAC, 88 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
| Voltage - Output 2 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.38 | |
Description
General part information
PMT-D2 Series
Enclosed AC DC Converters 2 Output 24V 5V 88 ~ 132 VAC, 176 ~ 264 VAC Input
