786090-7

Obsolete

TE Connectivity AMP Connectors

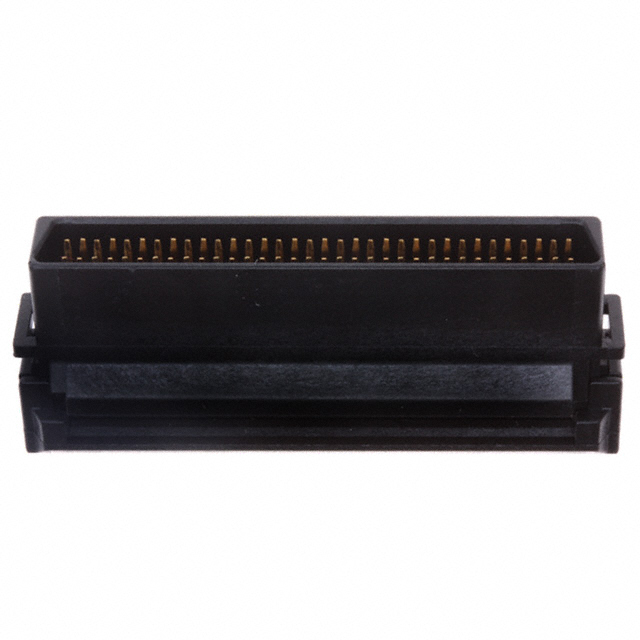

CONN D-TYPE PLUG 68POS IDC

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN D-TYPE PLUG 68POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	786090-7

Color	Black
Connector Style	D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Feed Through
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	68
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [x]	0.05
Shell Size, Connector Layout [y]	0.1
Termination	IDC, Ribbon Cable
Voltage Rating	30 VDC

CONN D-TYPE PLUG 68POS IDC

Part	Color	Mounting Type	Contact Material	Features	Connector Style	Number of Rows	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Positions	Dielectric Material	Contact Finish	Termination	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Voltage Rating	Connector Type
TE Connectivity AMP Connectors 786090-7	Black	Free Hanging (In-Line)	Phosphor Bronze	Feed Through	D-Type	2	UL94 V-0	0.76 Ám	30 Áin	105 ░C	-55 °C	Signal	68	Polybutylene Terephthalate (PBT), Glass Filled	Gold	IDC, Ribbon Cable	0.05	0.1	30 VDC	Male Pins, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

68 Position D-Type Plug, Male Pins Connector
