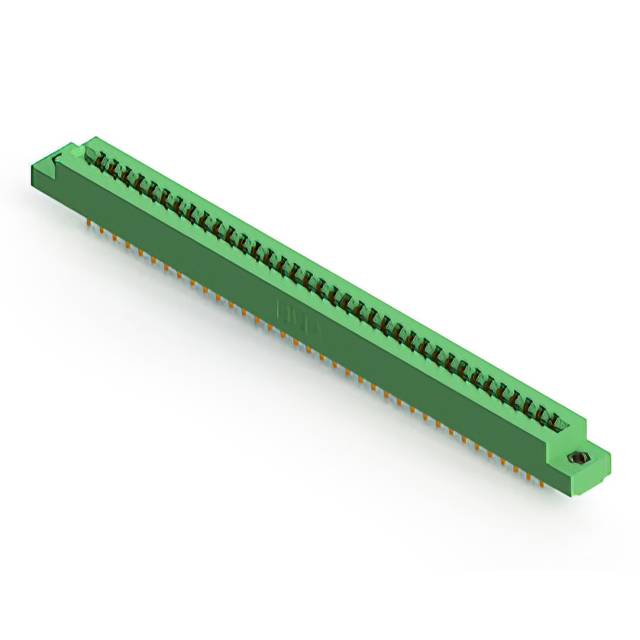

Specification	305-072-520-207

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	M3, Flush Mount, Top Opening, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Panel Mount, Through Hole
Number of Positions	36, 72
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

305-072 Series

Part	Flange Feature	Number of Positions	Pitch	Color	Card Type	Contact Material	Mounting Type	Contact Finish Thickness	Gender	Card Thickness (Min)	Card Thickness (Max)	Termination	Read Out	Number of Rows	Contact Type	Contact Finish	Operating Temperature (Min)	Operating Temperature (Max)	Termination Rows	Material - Insulation	Features	Flange Feature Diameter
EDAC Inc. 305-072-500-208	4-40 Flush Mount Threaded Insert Top Opening	36 72	0.156 in	Green	Dual Edge Non Specified	Copper Alloy	Panel Mount	10 Ąin	Female	0.054 in	0.07 in	Solder Eyelet(s)	Dual	2	Semi Bellows	Gold	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 305-072-500-268	4-40 Flush Mount Threaded Insert Top Opening	36 72	0.156 in	Green	Dual Edge Non Specified	Copper Alloy	Panel Mount	10 Ąin	Female	0.054 in	0.07 in	Solder Eyelet(s)	Dual	2	Semi Bellows	Gold	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 305-072-520-207	Flush Mount M3 Threaded Insert Top Opening	36 72	0.156 in	Green	Dual Edge Non Specified	Copper Alloy	Panel Mount Through Hole	10 Ąin	Female	0.054 in	0.07 in	Solder	Dual	2	Semi Bellows	Gold	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 305-072-556-568	4-40 Flush Mount Threaded Insert Top Opening	36 72	0.156 in	Green	Dual Edge Non Specified	Copper Alloy	Board Edge Straddle Mount	10 Ąin	Female	0.054 in	0.07 in	Solder	Dual	2	Semi Bellows	Gold	-40 °C	105 °C	2 rows	Polyester Thermoplastic	Card Extender Card Guides
EDAC Inc. 305-072-500-504	Flush Mount Top Opening Unthreaded	36 72	0.156 in	Green	Dual Edge Non Specified	Copper Alloy	Panel Mount	10 Ąin	Female	0.054 in	0.07 in	Solder Eyelet(s)	Dual	2	Semi Bellows	Gold	-40 °C	105 °C	2 rows	Polyester Thermoplastic		0.156 in
EDAC Inc. 305-072-555-258	4-40 Flush Mount Threaded Insert Top Opening	36 72	0.156 in	Green	Dual Edge Non Specified	Copper Alloy	Board Edge Straddle Mount	10 Ąin	Female	0.054 in	0.07 in	Solder	Dual	2	Semi Bellows	Gold	-40 °C	105 °C	2 rows	Polyester Thermoplastic	Card Extender Card Guides
EDAC Inc. 305-072-556-508	4-40 Flush Mount Threaded Insert Top Opening	36 72	0.156 in	Green	Dual Edge Non Specified	Copper Alloy	Board Edge Straddle Mount	10 Ąin	Female	0.054 in	0.07 in	Solder	Dual	2	Semi Bellows	Gold	-40 °C	105 °C	2 rows	Polyester Thermoplastic	Card Extender
EDAC Inc. 305-072-500-278	4-40 Flush Mount Threaded Insert Top Opening	36 72	0.156 in	Green	Dual Edge Non Specified	Copper Alloy	Panel Mount	10 Ąin	Female	0.054 in	0.07 in	Solder Eyelet(s)	Dual	2	Semi Bellows	Gold	-40 °C	105 °C	2 rows	Polyester Thermoplastic
EDAC Inc. 305-072-555-504	Flush Mount Top Opening Unthreaded	36 72	0.156 in	Green	Dual Edge Non Specified	Copper Alloy	Board Edge Straddle Mount	10 Ąin	Female	0.054 in	0.07 in	Solder	Dual	2	Semi Bellows	Gold	-40 °C	105 °C	2 rows	Polyester Thermoplastic	Card Extender	0.156 in
EDAC Inc. 305-072-520-558	4-40 Flush Mount Threaded Insert Top Opening	36 72	0.156 in	Green	Dual Edge Non Specified	Copper Alloy	Panel Mount Through Hole	10 Ąin	Female	0.054 in	0.07 in	Solder	Dual	2	Semi Bellows	Gold	-40 °C	105 °C	2 rows	Polyester Thermoplastic
