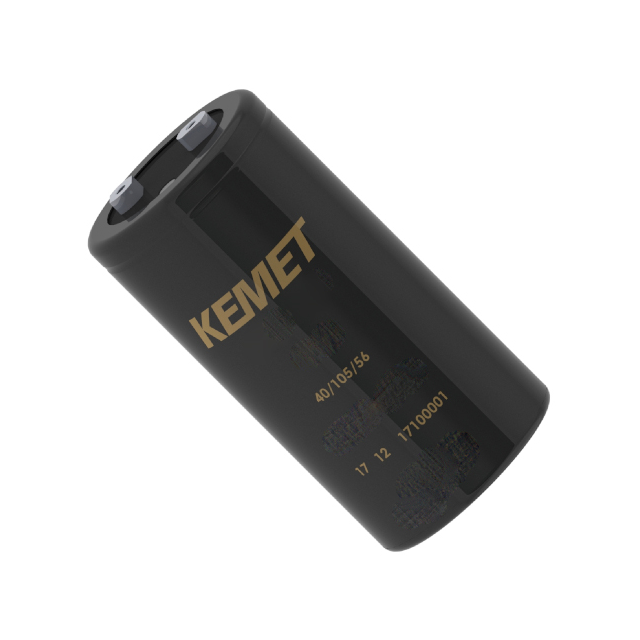

CAP ALUM 5600UF 20% 630V SCREW

ALS70A562QW630

Active

KEMET

CAP ALUM 5600UF 20% 630V SCREW

Description Specifications Series Pricing CAD Documents

Description

General part information

ALS70A Series

5600 µF 630 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 30.69mOhm @ 100Hz 20000 Hrs @ 85°C

Technical Specifications

Parameters and characteristics for this part

Specification	ALS70A562QW630

Applications	General Purpose
Capacitance	5600 µF
ESR (Equivalent Series Resistance)	30.69 mOhm
Height - Seated (Max)	6.654 in
Impedance	21 mOhms
Lead Spacing	1.252 in
Lifetime	20000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	21.5 A, 33.3 A
Size / Dimension Diameter	3.543 in
Tolerance	20 %
Voltage - Rated	630 V

ALS70A Series

...

Part	Lifetime	Impedance	Tolerance	Height - Seated (Max)	Package / Case	Mounting Type	Lead Spacing	Polarization	Size / Dimension Diameter	ESR (Equivalent Series Resistance)	Operating Temperature (Min)	Operating Temperature (Max)	Ripple Current	Applications	Capacitance	Voltage - Rated	Size / Dimension Length
KEMET ALS70A103QP450	20000 Hrs	16 mOhms	20 %	5.827 in	Can - Screw Terminals Radial	Chassis Mount	1.252 in	Polar	3.543 in	23 mOhm	-40 °C	85 °C	22.1 A 31.1 A	General Purpose	10000 µF	450 V
KEMET ALS70A473QS200	20000 Hrs	10 mOhm	20 %	7.717 in	Can - Screw Terminals Radial	Chassis Mount	1.252 in	Polar	3.543 in	11 mOhm	-40 °C	85 °C	31.9 A 37 A	General Purpose	47000 µF	200 VDC
KEMET ALS70A273QW250	20000 Hrs	11 mOhms	20 %	6.732 in	Can - Screw Terminals Radial	Chassis Mount	1.252 in	Polar	3.543 in	14 mOhm	-40 °C	85 °C	28 A 35 A	General Purpose	27000 µF	250 V
KEMET ALS70A223NP200	20000 Hrs	16 mOhms	20 %	5.827 in	Can - Screw Terminals Radial	Chassis Mount	1.252 in	Polar	3.031 in	20 mOhm	-40 °C	85 °C	21.6 A 26.1 A	General Purpose	22000 µF	200 VDC
KEMET ALS70A512MF400	19000 Hrs	22 mOhms	20 %	4.213 in	Can - Screw Terminals Radial	Chassis Mount	1.122 in	Polar	2.598 in	36 mOhm	-40 °C	85 °C	14 A 22.7 A	General Purpose	5100 µF	400 V
KEMET ALS70A103QM400	20000 Hrs	14 mOhm	20 %	5.236 in	Can - Screw Terminals Radial	Chassis Mount	1.252 in	Polar	3.543 in	22 mOhm	-40 °C	85 °C	21.1 A 29.8 A	General Purpose	10000 µF	400 V
KEMET ALS70A562QW630	20000 Hrs	21 mOhms	20 %	6.654 in	Can - Screw Terminals Radial	Chassis Mount	1.252 in	Polar	3.543 in	30.69 mOhm	-40 °C	85 °C	21.5 A 33.3 A	General Purpose	5600 µF	630 V
KEMET ALS70A114KF040	18000 Hrs	13 mOhm	20 %	4.213 in	Can - Screw Terminals Radial	Chassis Mount	0.874 in	Polar	2.008 in	14 mOhm	-40 °C	85 °C	19.9 A 21.4 A	General Purpose	110000 µF	40 V
KEMET ALS70A511DA400	11000 Hrs	172 mOhm	20 %	2.126 in	Can - Screw Terminals Radial	Chassis Mount	0.504 in	Polar	1.417 in	304 mOhm	-40 °C	85 °C	3.1 A 6.9 A	General Purpose	510 µF	400 V	2.126 in
KEMET ALS70A822QH400	20000 Hrs	17 mOhms	20 %	3.937 in	Can - Screw Terminals Radial	Chassis Mount	1.252 in	Polar	3.543 in	26 mOhm	-40 °C	85 °C	18.4 A 26.4 A	General Purpose	8200 µF	400 V
