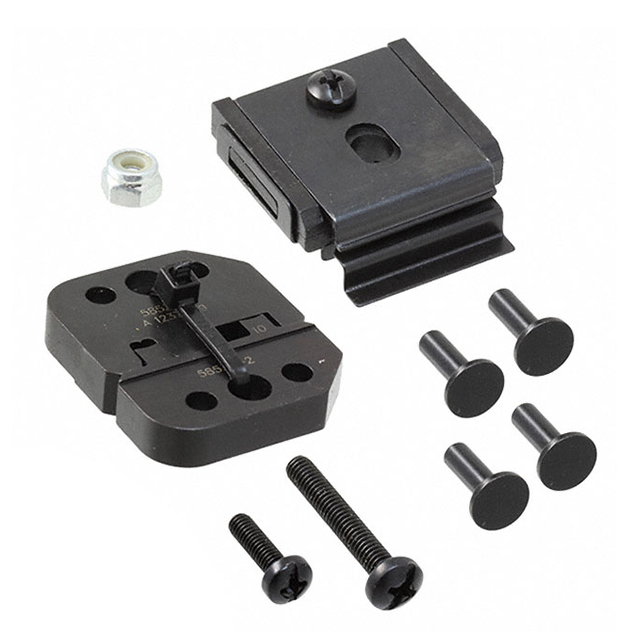

Specification	58530-2

Compatible Tools	1213890-1, 1213890-2, 1490076-2, 679304-1, 9-1478240-0, 354940-1
For Use With/Related Products	Rectangular Contacts, 10-12 AWG
Related Product Maximum Gauge	12 AWG
Related Product Minimum Gauge	10 AWG
Related Product Type	Rectangular Contacts
Tool Type	Die Set

58530 Series

Part	Ratcheting	Tool Method	Tool Type	Wire Entry Location	For Use With/Related Products	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Related Product Type	Related Product Minimum Gauge	Related Product Maximum Gauge	Compatible Tools
TE Connectivity AMP Connectors 58530-1	Ratchet	Manual	Hand Crimper	Side Entry	Rectangular Contacts	12 AWG	10 AWG
TE Connectivity AMP Connectors 58530-2			Die Set		10-12 AWG Rectangular Contacts			Rectangular Contacts	10 AWG	12 AWG	1213890-1 1213890-2 1490076-2 354940-1 679304-1 9-1478240-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
