Specification	PCL150114

Bundle Center to Mounting Center	1.29 in
Color	Tan, Gray
Features	Fuel Resistant, Non-Conductive, Flame Retardant, Protective Coating, Corrosion Resistant
Height	1.93 in
Length	2.58 in
Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Fastener
Opening Size	1.34 in
Panel Hole Size	0.2 in
Screw Size	10-32

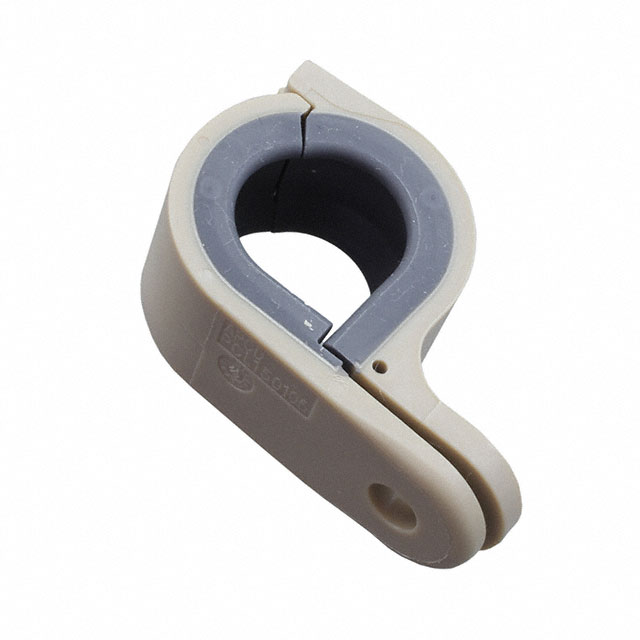

Type	P-Type, Clamp
Type Attributes	Hinged
Width	0.6 in

PCL150 Series

Part	Bundle Center to Mounting Center	Screw Size	Length	Panel Hole Size	Opening Size	Material	Features	Color	Mounting Type	Height	Width	Material Flammability Rating	Type	Type Attributes
McGill Microwave Systems PCL150106	0.85 in	10-32	1.7 in	0.2 in	0.59 in	Polyetheretherketone (PEEK)	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	Gray Tan	Fastener	1.05 in	0.6 in	UL94 V-0	Clamp P-Type	Hinged
McGill Microwave Systems PCL150112	1.18 in	10-32	2.36 in	0.2 in	1.16 in	Polyetheretherketone (PEEK)	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	Gray Tan	Fastener	1.76 in	0.6 in	UL94 V-0	Clamp P-Type	Hinged
McGill Microwave Systems PCL150110	1.07 in	10-32	2.12 in	0.2 in	0.97 in	Polyetheretherketone (PEEK)	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	Gray Tan	Fastener	1.48 in	0.6 in	UL94 V-0	Clamp P-Type	Hinged
McGill Microwave Systems PCL150102	0.64 in	10-32	1.27 in	0.2 in	0.22 in	Polyetheretherketone (PEEK)	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	Gray Tan	Fastener	0.71 in	0.6 in	UL94 V-0	Clamp P-Type	Hinged
McGill Microwave Systems PCL150103	0.71 in	10-32	1.41 in	0.2 in	0.31 in	Polyetheretherketone (PEEK)	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	Gray Tan	Fastener	0.81 in	0.6 in	UL94 V-0	Clamp P-Type	Hinged
McGill Microwave Systems PCL150107	0.93 in	10-32	1.84 in	0.2 in	0.69 in	Polyetheretherketone (PEEK)	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	Gray Tan	Fastener	1.2 in	0.6 in	UL94 V-0	Clamp P-Type	Hinged
McGill Microwave Systems PCL150115	1.35 in	10-32	2.69 in	0.2 in	1.44 in	Polyetheretherketone (PEEK)	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	Gray Tan	Fastener	2.05 in	0.6 in	UL94 V-0	Clamp P-Type	Hinged
McGill Microwave Systems PCL150104	0.76 in	10-32	1.51 in	0.2 in	0.41 in	Polyetheretherketone (PEEK)	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	Gray Tan	Fastener	0.88 in	0.6 in	UL94 V-0	Clamp P-Type	Hinged
McGill Microwave Systems PCL150105	0.81 in	10-32	1.6 in	0.2 in	0.5 in	Polyetheretherketone (PEEK)	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	Gray Tan	Fastener	0.96 in	0.6 in	UL94 V-0	Clamp P-Type	Hinged
McGill Microwave Systems PCL150114	1.29 in	10-32	2.58 in	0.2 in	1.34 in	Polyetheretherketone (PEEK)	Corrosion Resistant Flame Retardant Fuel Resistant Non-Conductive Protective Coating	Gray Tan	Fastener	1.93 in	0.6 in	UL94 V-0	Clamp P-Type	Hinged
