Q-1U00P0003009i

Active

Amphenol Custom Cable

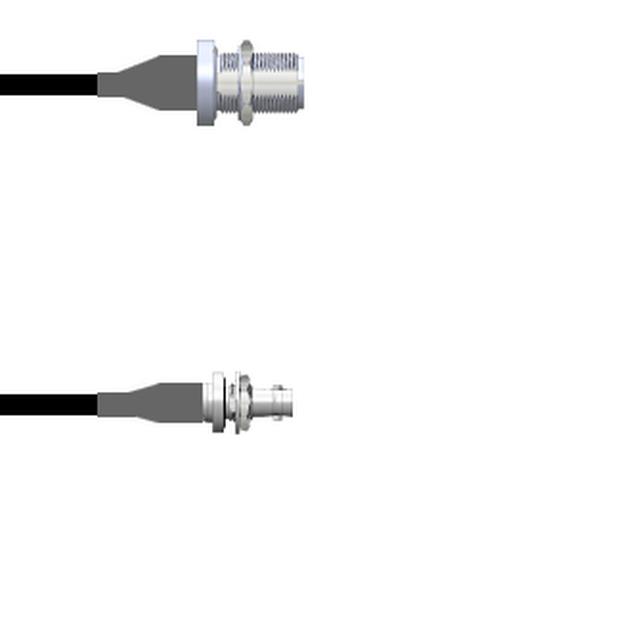

CBL ASSY HDBNC-NTYPE JCK-JCK 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U00P0003009i

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE JCK-JCK 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U00P0003009i

1st Connector	HD-BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-1U00P0 Series

Part	1st Connector	2nd Connector	Frequency - Max [Max]	Cable Type	2nd Contact Gender	Overall Impedance	Features	Color	2nd Connector Mounting Type	Style	2nd Connector Mounting Feature	1st Connector Mounting Type	Length	Length	1st Contact Gender	1st Connector Mounting Feature	Length
Amphenol Custom Cable Q-1U00P0003036i	HD-BNC Jack	N-Type Jack	6000 MHz	RG-174	Female	50 Ohms	Shielded	Black	Panel Mount	HD-BNC to N-Type	Bulkhead - Front Side Nut	Panel Mount	91.44 cm	36 in	Female	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-1U00P00051.5M	HD-BNC Jack	N-Type Jack	6000 MHz	RG-316	Female	50 Ohms	Shielded	Copper	Panel Mount	HD-BNC to N-Type	Bulkhead - Front Side Nut	Panel Mount	1.5 m	59.1 in	Female	Bulkhead - Front Side Nut	4.9 ft
Amphenol Custom Cable Q-1U00P00052.5M	HD-BNC Jack	N-Type Jack	6000 MHz	RG-316	Female	50 Ohms	Shielded	Copper	Panel Mount	HD-BNC to N-Type	Bulkhead - Front Side Nut	Panel Mount	2.5 m	98.4 in	Female	Bulkhead - Front Side Nut	8.2 '
Amphenol Custom Cable Q-1U00P0003009i	HD-BNC Jack	N-Type Jack	6000 MHz	RG-174	Female	50 Ohms	Shielded	Black	Panel Mount	HD-BNC to N-Type	Bulkhead - Front Side Nut	Panel Mount	228.6 mm	9 "	Female	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-1U00P0005084i	HD-BNC Jack	N-Type Jack	6000 MHz	RG-316	Female	50 Ohms	Shielded	Copper	Panel Mount	HD-BNC to N-Type	Bulkhead - Front Side Nut	Panel Mount	2.1 m	84 in	Female	Bulkhead - Front Side Nut	7 ft
Amphenol Custom Cable Q-1U00P0005009i	HD-BNC Jack	N-Type Jack	6000 MHz	RG-316	Female	50 Ohms	Shielded	Copper	Panel Mount	HD-BNC to N-Type	Bulkhead - Front Side Nut	Panel Mount	228.6 mm	9 "	Female	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-1U00P0005002M	HD-BNC Jack	N-Type Jack	6000 MHz	RG-316	Female	50 Ohms	Shielded	Copper	Panel Mount	HD-BNC to N-Type	Bulkhead - Front Side Nut	Panel Mount	2 m	78.7 in	Female	Bulkhead - Front Side Nut	6.6 ft
Amphenol Custom Cable Q-1U00P0005108i	HD-BNC Jack	N-Type Jack	6000 MHz	RG-316	Female	50 Ohms	Shielded	Copper	Panel Mount	HD-BNC to N-Type	Bulkhead - Front Side Nut	Panel Mount	2.7 m	108 in	Female	Bulkhead - Front Side Nut	9 ft
Amphenol Custom Cable Q-1U00P0005006i	HD-BNC Jack	N-Type Jack	6000 MHz	RG-316	Female	50 Ohms	Shielded	Copper	Panel Mount	HD-BNC to N-Type	Bulkhead - Front Side Nut	Panel Mount	152.4 mm	6 in	Female	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-1U00P0003003M	HD-BNC Jack	N-Type Jack	6000 MHz	RG-174	Female	50 Ohms	Shielded	Black	Panel Mount	HD-BNC to N-Type	Bulkhead - Front Side Nut	Panel Mount	3 m	118.1 in	Female	Bulkhead - Front Side Nut	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 118.00
		25	$ 115.75
		50	$ 113.50
		100	$ 111.25
		250	$ 109.00

Description

General part information

Q-1U00P0 Series

Cable Assembly Coaxial HD-BNC to N-Type RG-174 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
