Q-2F0550008001M

Active

Amphenol Custom Cable

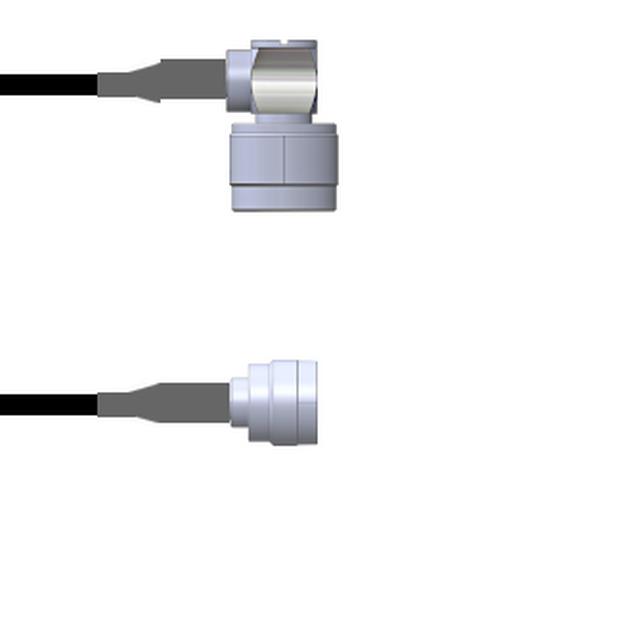

CBL ASSY NTYPE-TNC PLUG-PLG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2F0550008001M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-PLG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2F0550008001M

1st Connector	N-Type Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms

Q-2F0550 Series

Part	Overall Impedance	Color	Frequency - Max [Max]	2nd Connector Mounting Type	Cable Type	2nd Contact Gender	Length	Length	Length	1st Connector	1st Contact Gender	Features	2nd Connector	1st Connector Mounting Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2F0550008001M	50 Ohms	Black	11 GHz	Free Hanging (In-Line)	RG-58	Male	1 m	3.3 ft	39.4 in	N-Type Plug Right Angle	Male	Shielded	TNC Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F0550008060i	50 Ohms	Black	11 GHz	Free Hanging (In-Line)	RG-58	Male	1.5 m	5 ft	5 '	N-Type Plug Right Angle	Male	Shielded	TNC Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F0550008.75M	50 Ohms	Black	11 GHz	Free Hanging (In-Line)	RG-58	Male	750 mm		29.53 "	N-Type Plug Right Angle	Male	Shielded	TNC Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F05500080.5M	50 Ohms	Black	11 GHz	Free Hanging (In-Line)	RG-58	Male	50 cm		19.69 "	N-Type Plug Right Angle	Male	Shielded	TNC Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F0550008009i	50 Ohms	Black	11 GHz	Free Hanging (In-Line)	RG-58	Male	228.6 mm		9 "	N-Type Plug Right Angle	Male	Shielded	TNC Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F0550008.25M	50 Ohms	Black	11 GHz	Free Hanging (In-Line)	RG-58	Male				N-Type Plug Right Angle	Male	Shielded	TNC Plug	Free Hanging (In-Line)	9.843 "	250 mm
Amphenol Custom Cable Q-2F0550008018i	50 Ohms	Black	11 GHz	Free Hanging (In-Line)	RG-58	Male				N-Type Plug Right Angle	Male	Shielded	TNC Plug	Free Hanging (In-Line)		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2F0550008006i	50 Ohms	Black	11 GHz	Free Hanging (In-Line)	RG-58	Male	152.4 mm		6 in	N-Type Plug Right Angle	Male	Shielded	TNC Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F0550008024i	50 Ohms	Black	11 GHz	Free Hanging (In-Line)	RG-58	Male	609.6 mm		24 "	N-Type Plug Right Angle	Male	Shielded	TNC Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-2F0550008002M	50 Ohms	Black	11 GHz	Free Hanging (In-Line)	RG-58	Male	2 m	6.6 ft	78.7 in	N-Type Plug Right Angle	Male	Shielded	TNC Plug	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 80.24
		25	$ 78.70
		50	$ 77.16
		100	$ 75.62
		250	$ 74.08

Description

General part information

Q-2F0550 Series

Cable Assembly Coaxial N-Type to TNC RG-58 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
