8521 013100

Active

Belden Inc.

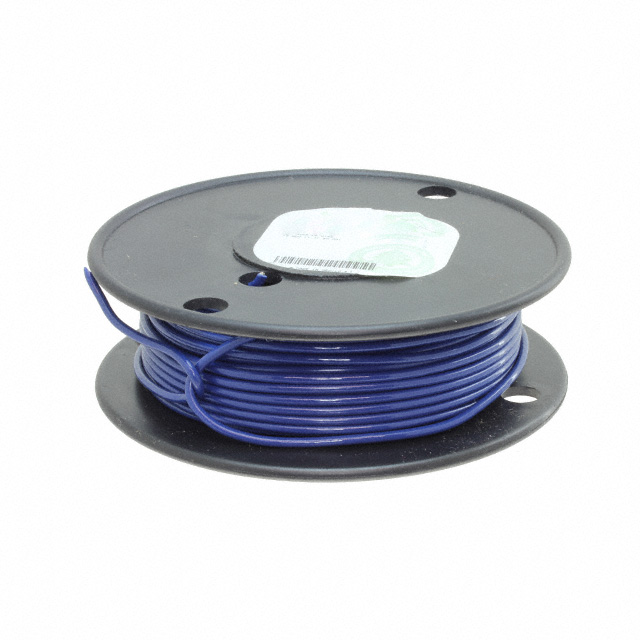

HOOK-UP STRND 16AWG BLUE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCabling Solutions for Industrial Applications Datasheet

8521 013100

Active

Belden Inc.

HOOK-UP STRND 16AWG BLUE

Deep-Dive with AI

DocumentsCabling Solutions for Industrial Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8521 013100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Features	Chemical Resistant
Jacket (Insulation) Diameter [diameter]	2.48 mm
Jacket (Insulation) Diameter [diameter]	0.098 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.019 in
Jacket (Insulation) Thickness	0.48 mm
Jacket Color	Blue
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Qualification	MIL-W-76C Type MW
Voltage	1000 V
Wire Gauge	16 AWG

8521 Series

Part	Voltage	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Features	Jacket Color	Qualification	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
Belden Inc. 8521 013100	1000 V	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	16 AWG	Hook-Up	0.019 in	0.48 mm	Copper Tinned	2.48 mm	0.098 in	30.5 m	100 ft	Chemical Resistant	Blue	MIL-W-76C Type MW	30 AWG	26
Belden Inc. 8521 003100	1000 V	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	16 AWG	Hook-Up	0.019 in	0.48 mm	Copper Tinned	2.48 mm	0.098 in	30.5 m	100 ft	Chemical Resistant	Orange	MIL-W-76C Type MW	30 AWG	26
Belden Inc. 8521 0021000	1000 V	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	16 AWG	Hook-Up	0.019 in	0.48 mm	Copper Tinned	2.48 mm	0.098 in			Chemical Resistant	Red	MIL-W-76C Type MW	30 AWG	26	1000 ft	304.8 m
Belden Inc. 8521 0191000	1000 V	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	16 AWG	Hook-Up	0.019 in	0.48 mm	Copper Tinned	2.48 mm	0.098 in			Chemical Resistant	White Brown Stripe	MIL-W-76C Type MW	30 AWG	26	1000 ft	304.8 m
Belden Inc. 8521 0031000	1000 V	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	16 AWG	Hook-Up	0.019 in	0.48 mm	Copper Tinned	2.48 mm	0.098 in			Chemical Resistant	Orange	MIL-W-76C Type MW	30 AWG	26	1000 ft	304.8 m
Belden Inc. 8521 0051000	1000 V	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	16 AWG	Hook-Up	0.019 in	0.48 mm	Copper Tinned	2.48 mm	0.098 in			Chemical Resistant	Green	MIL-W-76C Type MW	30 AWG	26	1000 ft	304.8 m
Belden Inc. 8521 0071000	1000 V	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	16 AWG	Hook-Up	0.019 in	0.48 mm	Copper Tinned	2.48 mm	0.098 in			Chemical Resistant	Violet	MIL-W-76C Type MW	30 AWG	26	1000 ft	304.8 m
Belden Inc. 8521 007100	1000 V	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	16 AWG	Hook-Up	0.019 in	0.48 mm	Copper Tinned	2.48 mm	0.098 in	30.5 m	100 ft	Chemical Resistant	Violet	MIL-W-76C Type MW	30 AWG	26
Belden Inc. 8521 0201000	1000 V	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	16 AWG	Hook-Up	0.019 in	0.48 mm	Copper Tinned	2.48 mm	0.098 in			Chemical Resistant	White Orange Stripe	MIL-W-76C Type MW	30 AWG	26	1000 ft	304.8 m
Belden Inc. 8521 0061000	1000 V	Poly-Vinyl Chloride (PVC)	-40 °C	80 C	16 AWG	Hook-Up	0.019 in	0.48 mm	Copper Tinned	2.48 mm	0.098 in			Chemical Resistant	Blue	MIL-W-76C Type MW	30 AWG	26	1000 ft	304.8 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 2.39
		200	$ 2.27
		300	$ 2.20
		500	$ 2.12
		700	$ 2.07
		1000	$ 2.02
		2500	$ 1.88
		5000	$ 1.79

Description

General part information

8521 Series

16 AWG Hook-Up Wire 26/30 Blue 1000V 100.0' (30.5m)

Documents

Technical documentation and resources

Cabling Solutions for Industrial Applications

Datasheet
