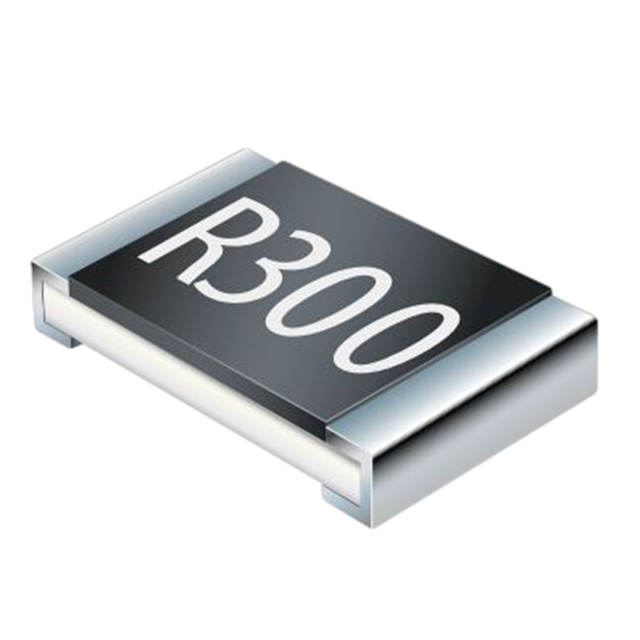

CRL2010-JW-R510ELF

Active

Bourns Inc.

RES 0.51 OHM 5% 3/4W 2010

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CRL2010-JW-R510ELF

Active

Bourns Inc.

RES 0.51 OHM 5% 3/4W 2010

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CRL2010-JW-R510ELF

Composition	Thick Film
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	2010 (5025 Metric)
Power (Watts)	0.75 W
Power (Watts)	0.75 W
Resistance	510 mOhms
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.098 in
Size / Dimension [y]	2.5 mm
Supplier Device Package	2010
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

CRL2010 Series

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Temperature Coefficient	Resistance	Number of Terminations	Power (Watts)	Power (Watts)	Tolerance	Supplier Device Package	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Bourns Inc. CRL2010-JW-R510ELF	0.7 mm	0.028 in	155 °C	-55 °C	Thick Film	200 ppm/°C	510 mOhms	2	0.75 W	0.75 W	5 %	2010	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm
Bourns Inc. CRL2010-FW-4R70ELF	0.7 mm	0.028 in	155 °C	-55 °C	Thick Film	200 ppm/°C	4.7 Ohms	2	0.75 W	0.75 W	1 %	2010	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm
Bourns Inc. CRL2010-JW-R240ELF	0.7 mm	0.028 in	155 °C	-55 °C	Thick Film	200 ppm/°C	240 mOhms	2	0.75 W	0.75 W	5 %	2010	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm
Bourns Inc. CRL2010-JW-1R00ELF	0.7 mm	0.028 in	155 °C	-55 °C	Thick Film	200 ppm/°C	1 Ohms	2	0.75 W	0.75 W	5 %	2010	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm
Bourns Inc. CRL2010-FW-R300ELF	0.7 mm	0.028 in	155 °C	-55 °C	Thick Film	200 ppm/°C	0.3 Ohms	2	0.75 W	0.75 W	1 %	2010	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm
Bourns Inc. CRL2010-JW-8R20ELF	0.7 mm	0.028 in	155 °C	-55 °C	Thick Film	200 ppm/°C		2	0.75 W	0.75 W	5 %	2010	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm
Bourns Inc. CRL2010-FW-R470ELF	0.7 mm	0.028 in	155 °C	-55 °C	Thick Film	200 ppm/°C	470 mOhms	2	0.75 W	0.75 W	1 %	2010	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm
Bourns Inc. CRL2010-FW-R330ELF	0.7 mm	0.028 in	155 °C	-55 °C	Thick Film	200 ppm/°C	330 mOhms	2	0.75 W	0.75 W	1 %	2010	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm
Bourns Inc. CRL2010-FW-8R20ELF	0.7 mm	0.028 in	155 °C	-55 °C	Thick Film	200 ppm/°C		2	0.75 W	0.75 W	1 %	2010	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm
Bourns Inc. CRL2010-JW-R270ELF	0.7 mm	0.028 in	155 °C	-55 °C	Thick Film	200 ppm/°C	270 mOhms	2	0.75 W	0.75 W	5 %	2010	2010 (5025 Metric)	0.197 in	0.098 in	5 mm	2.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.65
		10	$ 0.37
		50	$ 0.27
		100	$ 0.23
		500	$ 0.18
		1000	$ 0.16
	Digi-Reel®	1	$ 0.65
		10	$ 0.37
		50	$ 0.27
		100	$ 0.23
		500	$ 0.18
		1000	$ 0.16
	Tape & Reel (TR)	4000	$ 0.11

Description

General part information

CRL2010 Series

510 mOhms ±5% 0.75W, 3/4W Chip Resistor 2010 (5025 Metric) Thick Film
