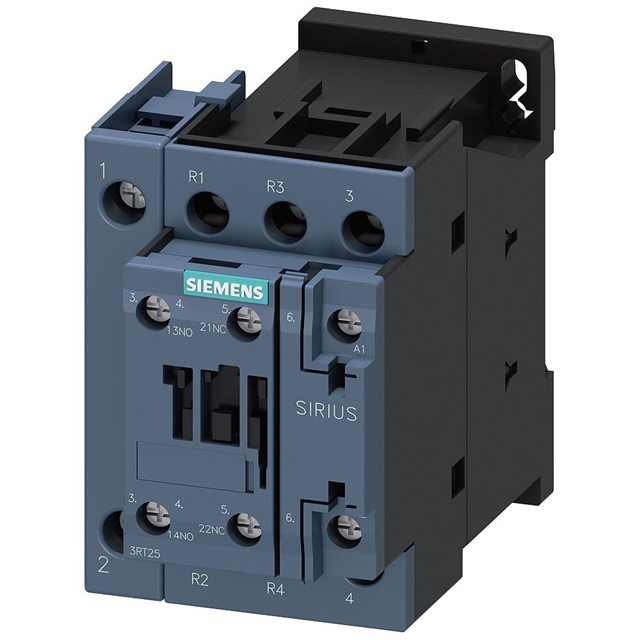

3RT25261AK60
ActiveSiemens
CONTACTOR S0 25A 120VAC 2NO/2NC
Deep-Dive with AI
Search across all available documentation for this part.
3RT25261AK60
ActiveSiemens
CONTACTOR S0 25A 120VAC 2NO/2NC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RT25261AK60 |
|---|---|
| Coil Power | 87 VA |
| Coil Voltage | 120 VAC |
| Contact Form | 4PST-2NO/2NC (2 Form A, 2 Form B) |
| Contact Rating (Current) | 25 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 96 VAC |
| Operate Time | 40 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 16 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 219.03 | |
| 10 | $ 205.34 | |||
Description
General part information
3RT2526 Series
CONTACTOR S0 25A 120VAC 2NO/2NC
