Amphenol ICC (FCI)

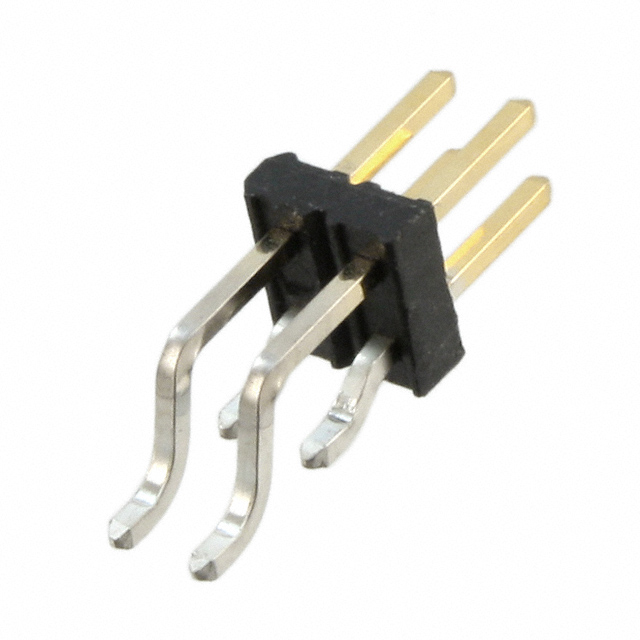

CONN HEADER SMD R/A 4POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsbwb minitek2.0mm smt horizontalheaders Datasheet Datasheet +1

10112690-G03-02LF

Active

Amphenol ICC (FCI)

CONN HEADER SMD R/A 4POS 2MM

Deep-Dive with AI

Documentsbwb minitek2.0mm smt horizontalheaders Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10112690-G03-02LF

Connector Type	Header
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

10112690 Series

...

Part	Termination	Style	Number of Positions	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Mating	Contact Material	Insulation Color	Current Rating (Amps)	Connector Type	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height [custom]	Insulation Height [custom]	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features
Amphenol ICC (FCI) 10112690-F01-03LF	Solder	Board to Cable/Wire	6	Push-Pull	2 çm	78.7 çin	Surface Mount Right Angle	3.2 mm	0.126 "	UL94 V-0	All	Gold	Copper Alloy	Black	3 A	Header	2	Male Pin	-55 °C	125 °C	Tin	Flash	0.079 in	2 mm	0.157 in	4 mm	Square	0.079 in	2 mm	Unshrouded	200 V
Amphenol ICC (FCI) 10112690-G04-04ALF	Solder	Board to Cable/Wire	8	Push-Pull	2 çm	78.7 çin	Surface Mount Right Angle	7 mm	0.276 in	UL94 V-0	All	Gold or Gold GXT™	Copper Alloy	Black	3 A	Header	2	Male Pin	-55 °C	125 °C	Tin		0.079 in	2 mm	0.157 in	4 mm	Square	0.079 in	2 mm	Unshrouded	200 V	30 Áin	0.76 Ám	Pick and Place
Amphenol ICC (FCI) 10112690-T01-21ULF	Solder	Board to Cable/Wire	42	Push-Pull	2 çm	78.7 çin	Surface Mount Right Angle	3.2 mm	0.126 "	UL94 V-0	All		Copper Alloy	Black	3 A	Header	2	Male Pin	-55 °C	125 °C	Tin		0.079 in	2 mm	0.157 in	4 mm	Square	0.079 in	2 mm	Unshrouded	200 V	78.7 µin	2 µm
Amphenol ICC (FCI) 10112690-F01-11ULF	Solder	Board to Cable/Wire	22 positions	Push-Pull	2 çm	78.7 çin	Surface Mount Right Angle	3.2 mm	0.126 "	UL94 V-0	All	Gold	Copper Alloy	Black	3 A	Header	2	Male Pin	-55 °C	125 °C	Tin	Flash	0.079 in	2 mm	0.157 in	4 mm	Square	0.079 in	2 mm	Unshrouded	200 V
Amphenol ICC (FCI) 10112690-G03-02LF	Solder	Board to Cable/Wire	4	Push-Pull	2 çm	78.7 çin	Surface Mount Right Angle	4 mm	0.157 in	UL94 V-0	All	Gold or Gold GXT™	Copper Alloy	Black	3 A	Header	2	Male Pin	-55 °C	125 °C	Tin		0.079 in	2 mm	0.157 in	4 mm	Square	0.079 in	2 mm	Unshrouded	200 V	30 Áin	0.76 Ám
Amphenol ICC (FCI) 10112690-T03-22ULF	Solder	Board to Cable/Wire	44	Push-Pull	2 çm	78.7 çin	Surface Mount Right Angle	4 mm	0.157 in	UL94 V-0	All		Copper Alloy	Black	3 A	Header	2	Male Pin	-55 °C	125 °C	Tin		0.079 in	2 mm	0.157 in	4 mm	Square	0.079 in	2 mm	Unshrouded	200 V	78.7 µin	2 µm
Amphenol ICC (FCI) 10112690-G03-06ULF	Solder	Board to Cable/Wire	12	Push-Pull	2 çm	78.7 çin	Surface Mount Right Angle	4 mm	0.157 in	UL94 V-0	All	Gold or Gold GXT™	Copper Alloy	Black	3 A	Header	2	Male Pin	-55 °C	125 °C	Tin		0.079 in	2 mm	0.157 in	4 mm	Square	0.079 in	2 mm	Unshrouded	200 V	30 Áin	0.76 Ám
Amphenol ICC (FCI) 10112690-G03-19ALF	Solder	Board to Cable/Wire	38	Push-Pull	2 çm	78.7 çin	Surface Mount Right Angle	4 mm	0.157 in	UL94 V-0	All	Gold or Gold GXT™	Copper Alloy	Black	3 A	Header	2	Male Pin	-55 °C	125 °C	Tin		0.079 in	2 mm	0.157 in	4 mm	Square	0.079 in	2 mm	Unshrouded	200 V	30 Áin	0.76 Ám	Pick and Place
Amphenol ICC (FCI) 10112690-F01-23ULF	Solder	Board to Cable/Wire	46	Push-Pull	2 çm	78.7 çin	Surface Mount Right Angle	3.2 mm	0.126 "	UL94 V-0	All	Gold	Copper Alloy	Black	3 A	Header	2	Male Pin	-55 °C	125 °C	Tin	Flash	0.079 in	2 mm	0.157 in	4 mm	Square	0.079 in	2 mm	Unshrouded	200 V
Amphenol ICC (FCI) 10112690-F01-22ULF	Solder	Board to Cable/Wire	44	Push-Pull	2 çm	78.7 çin	Surface Mount Right Angle	3.2 mm	0.126 "	UL94 V-0	All	Gold	Copper Alloy	Black	3 A	Header	2	Male Pin	-55 °C	125 °C	Tin	Flash	0.079 in	2 mm	0.157 in	4 mm	Square	0.079 in	2 mm	Unshrouded	200 V
