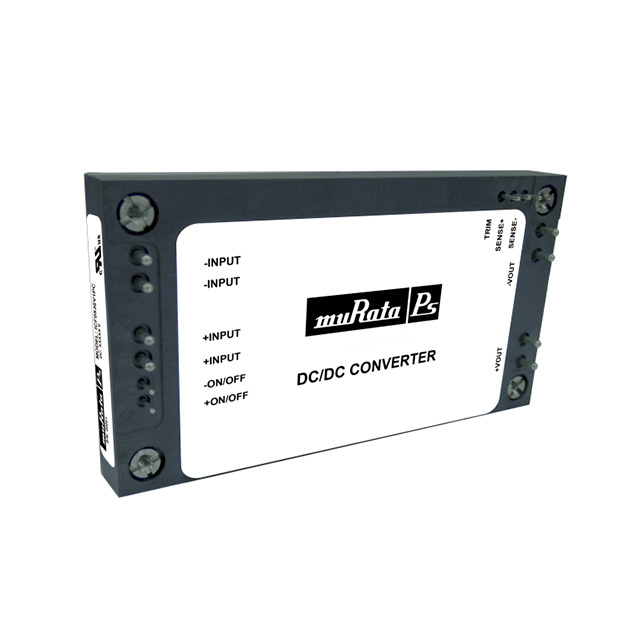

ICF0184V1NC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 1.008KW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ICF0184V1NC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 1.008KW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ICF0184V1NC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 84 A |
| Efficiency | 93 % |
| Features | OVP, OTP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Full Brick |
| Power (Watts) | 1.008 kW |
| Size / Dimension [x] | 119.4 mm |
| Size / Dimension [x] | 4.7 in |
| Size / Dimension [y] | 63.5 mm |
| Size / Dimension [y] | 2.5 in |
| Size / Dimension [z] | 0.52 " |
| Size / Dimension [z] | 13.2 mm |
| Supplier Device Package | Full Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
ICF01 Series
DC DC CONVERTER 12V 1.008KW
| Part | Type | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Number of Outputs | Package / Case | Voltage - Output 1 | Voltage - Isolation | Efficiency | Features | Mounting Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Power (Watts) | Voltage - Input (Max) [Max] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. ICF0184V1NC | Isolated Module | -40 °C | 105 C | Full Brick | 1 | Full Brick | 12 V | 2250 VDC | 93 % | OCP, OTP, OVP, Remote On/Off, SCP | Through Hole | 63.5 mm | 0.52 " | 13.2 mm | 119.4 mm | 4.7 in | 2.5 in | 9 V | 84 A | 1.008 kW | 36 V | ITE (Commercial) |
Description
General part information
ICF01 Series
Isolated Module DC DC Converter 1 Output 12V 84A 9V - 36V Input
