IDSS-05-D-06.00-G

Active

Samtec Inc.

INSULATION DISPLACEMENT SOCKET C

Search across all available documentation for this part.

Active

Samtec Inc.

INSULATION DISPLACEMENT SOCKET C

Technical Specifications

Parameters and characteristics for this part

...

Part	Color	Pitch - Connector	Pitch - Connector	Shielding	Connector Type	Number of Rows	Cable Termination	Pitch - Cable	Pitch - Cable	Contact Finish	Length	Length	Length
Samtec Inc. IDSS-05-S-39.37-ST4	Multiple Ribbon	0.1 in	2.54 mm	Unshielded	Socket to Cable	1	IDC	0.1 in	2.54 mm	Gold
Samtec Inc. IDSS-05-D-12.00	Multiple Ribbon	0.1 in	2.54 mm	Unshielded	Socket to Socket	1	IDC	0.1 in	2.54 mm	Gold
Samtec Inc. IDSS-05-D-06.00-G		0.1 in	2.54 mm	Unshielded	Socket to Socket	1	IDC	0.1 in	2.54 mm	Gold	152.4 mm	6 "	0.5 '
Samtec Inc. IDSS-05-D-02.50-R	Multiple Ribbon	0.1 in	2.54 mm	Unshielded	Socket to Socket Reversed	1	IDC	0.1 in	2.54 mm	Gold
Samtec Inc. IDSS-05-D-48.00	Multiple Ribbon	0.1 in	2.54 mm	Unshielded	Socket to Socket	1	IDC	0.1 in	2.54 mm	Gold
Samtec Inc. IDSS-05-D-08.50-T-G-R		0.1 in	2.54 mm	Unshielded	Socket to Socket Reversed	1	IDC	0.1 in	2.54 mm	Gold
Samtec Inc. IDSS-05-S-60.00	Multiple Ribbon	0.1 in	2.54 mm	Unshielded	Socket to Cable	1	IDC	0.1 in	2.54 mm	Gold
Samtec Inc. IDSS-05-D-65.00-T-G		0.1 in	2.54 mm	Unshielded	Socket to Socket	1	IDC	0.1 in	2.54 mm	Tin
Samtec Inc. IDSS-05-S-05.00	Multiple Ribbon	0.1 in	2.54 mm	Unshielded	Socket to Cable	1	IDC	0.1 in	2.54 mm	Gold
Samtec Inc. IDSS-05-S-42.00	Multiple Ribbon	0.1 in	2.54 mm	Unshielded	Socket to Cable	1	IDC	0.1 in	2.54 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

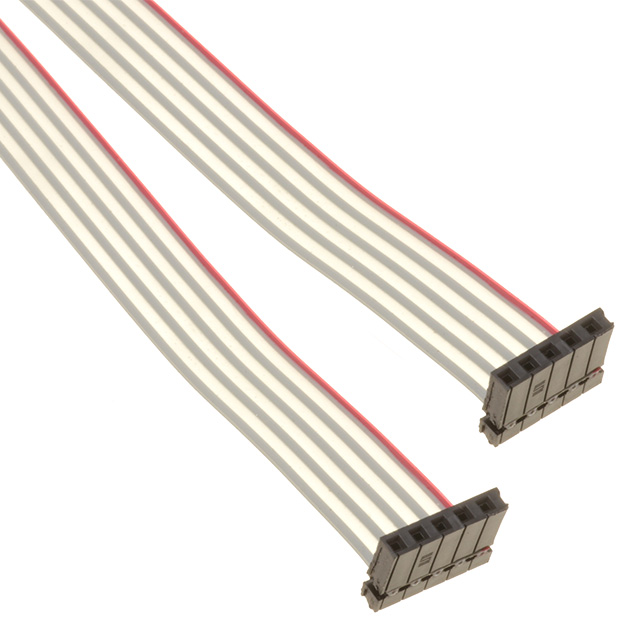

5 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
