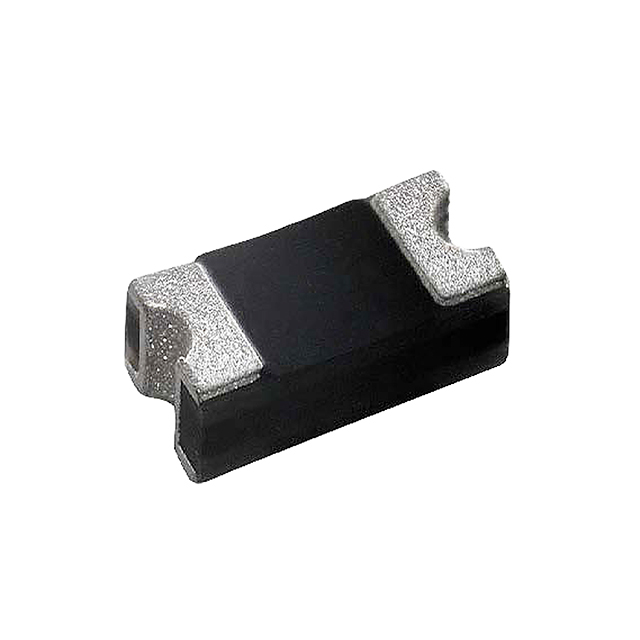

ACDBAT360-HF

Active

Comchip Technology

DIODE SCHOTTKY 60V 3A 2010

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 60V 3A 2010

Technical Specifications

Parameters and characteristics for this part

Specification	ACDBAT360-HF

Capacitance @ Vr, F	180 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	500 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	2010 (5025 Metric)
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	2010
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	700 mV

DIODE SCHOTTKY 60V 3A 2010

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Grade	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Package / Case	Speed	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Current - Average Rectified (Io)	Qualification
Comchip Technology ACDBAT360-HF	60 V	180 pF	Automotive	2010	500 µA	700 mV	2010 (5025 Metric)	200 mA, 500 ns	Schottky	150 °C	-55 °C	Surface Mount	3 A	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 60 V 3A Surface Mount 2010
