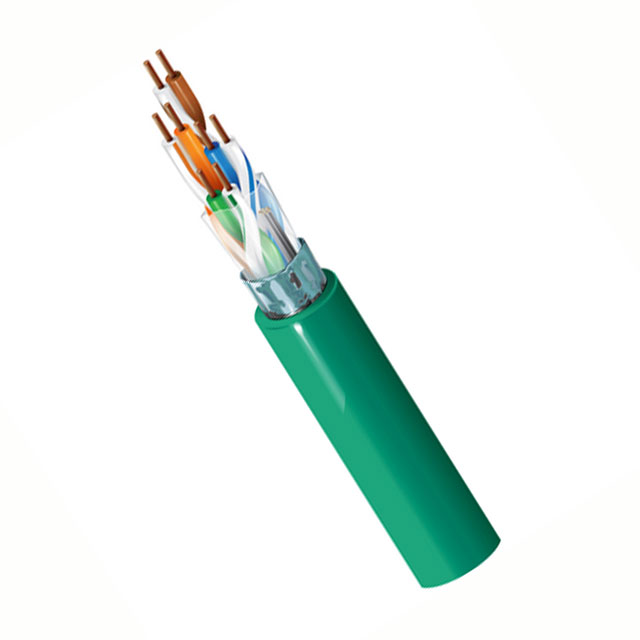

Specification	1624R 0061000

Cable Type	Multi-Pair, Cat5
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Diameter	0.26 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket Color	Blue
Length	50 ft, 1000 ft, 100 ft
Number of Conductors	8
Number of Conductors - Pair	4
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-20 °C
Ratings	UL, CMR, Style
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Network
Wire Gauge	24 AWG

1624R Series

Part	Wire Gauge	Length	Cable Type	Shield Type	Jacket (Insulation) Diameter	Features	Jacket (Insulation) Material	Ratings	Usage	Conductor Material	Jacket Color	Operating Temperature (Min)	Operating Temperature (Max)	Conductor Insulation	Conductor Strand	Number of Conductors - Pair	Number of Conductors	Shield Material	Shield Coverage
Belden Inc. 1624R 0061000	24 AWG	50 ft 100 ft 1000 ft	Cat5 Multi-Pair	Foil	0.26 in	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	CMR Style UL	Network	Bare Copper	Blue	-20 °C	75 °C	Polyolefin (PO)	Solid	4	8	Aluminum	100 %
Belden Inc. 1624R F2VA1000	24 AWG	1000 ft	Cat5 Multi-Pair	Foil	0.26 in	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	CMR Style UL	Network	Bare Copper	Gray	-20 °C	75 °C	Polyolefin (PO)	Solid	4	8	Aluminum	100 %
Belden Inc. 1624R 0051000	24 AWG	1000 ft	Cat5 Multi-Pair	Foil	0.26 in	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	CMR Style UL	Network	Bare Copper	Green	-20 °C	75 °C	Polyolefin (PO)	Solid	4	8	Aluminum	100 %
Belden Inc. 1624R 0021000	24 AWG	1000 ft	Cat5 Multi-Pair	Foil	0.26 in	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	CMR Style UL	Network	Bare Copper	Red	-20 °C	75 °C	Polyolefin (PO)	Solid	4	8	Aluminum	100 %
Belden Inc. 1624R F2V1000	24 AWG	1000 ft	Cat5 Multi-Pair	Foil	0.26 in	Drain Wire	Poly-Vinyl Chloride (PVC) Riser	CMR Style UL	Network	Bare Copper	Gray	-20 °C	75 °C	Polyolefin (PO)	Solid	4	8	Aluminum	100 %
