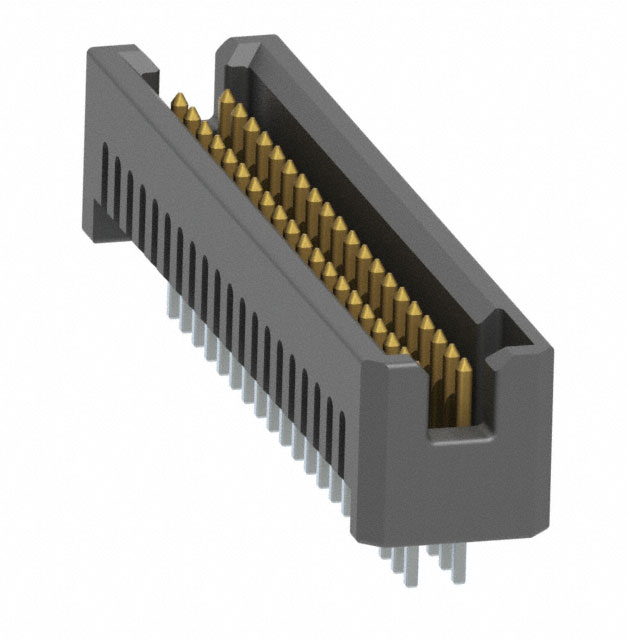

TFM-120-01-LM-D

Active

Samtec Inc.

CONN HEADER VERT 40POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

TFM-120-01-LM-D

Active

Samtec Inc.

CONN HEADER VERT 40POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFM-120-01-LM-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Mating	3.33 mm
Contact Length - Mating	0.131 in
Contact Length - Post [x]	0.078 in
Contact Length - Post [x]	1.98 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	275 VAC

TFM-120 Series

...

Part	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Insulation Color	Termination	Shrouding	Contact Material	Number of Positions	Number of Positions Loaded	Contact Finish - Mating	Contact Shape	Pitch - Mating	Pitch - Mating	Style	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Number of Rows	Mounting Type	Connector Type	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Insulation Height	Insulation Height	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TFM-120-02-S-D-WT-K-TR	Push-Pull	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Black	Solder	Shrouded - 4 Wall	Phosphor Bronze	40	All	Gold	Square	0.05 in	1.27 mm	Board to Board Cable	3.33 mm	0.131 in	UL94 V-0	2	Surface Mount	Header	2.9 A	Tin	30 Áin	0.76 Ám	Pick and Place Solder Retention	5.6 mm	0.22 in	Male Pin
Samtec Inc. TFM-120-01-F-S	Push-Pull			275 VAC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Black	Solder	Shrouded - 4 Wall	Phosphor Bronze	20	All	Gold	Square	0.05 in	1.27 mm	Board to Board Cable	3.33 mm	0.131 in	UL94 V-0	1	Through Hole	Header	3.2 A	Tin	3 µin	0.076 µm		5.6 mm	0.22 in	Male Pin	0.078 in	1.98 mm
Samtec Inc. TFM-120-21-S-D-LC	Push-Pull	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Black	Solder	Shrouded - 4 Wall	Phosphor Bronze	40	All	Gold	Square	0.05 in	1.27 mm	Board to Board Cable	3.53 mm	0.139 in	UL94 V-0	2	Through Hole	Header	2.9 A	Tin	30 Áin	0.76 Ám		9.14 mm	0.36 in	Male Pin			2.03 mm	0.08 in
Samtec Inc. TFM-120-02-S-D-LC	Push-Pull	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Black	Solder	Shrouded - 4 Wall	Phosphor Bronze	40	All	Gold	Square	0.05 in	1.27 mm	Board to Board Cable	3.33 mm	0.131 in	UL94 V-0	2	Surface Mount	Header	2.9 A	Tin	30 Áin	0.76 Ám		5.6 mm	0.22 in	Male Pin
Samtec Inc. TFM-120-11-SM-D	Push-Pull	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Black	Solder	Shrouded - 4 Wall	Phosphor Bronze	40	All	Gold	Square	0.05 in	1.27 mm	Board to Board Cable	3.53 mm	0.139 in	UL94 V-0	2	Through Hole	Header	2.9 A	Tin	30 Áin	0.76 Ám		7.37 mm	0.29 in	Male Pin			2.03 mm	0.08 in
Samtec Inc. TFM-120-01-H-D-DS	Push-Pull	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Black	Solder	Shrouded - 4 Wall	Phosphor Bronze	40	All	Gold	Square	0.05 in	1.27 mm	Board to Board Cable	3.33 mm	0.131 in	UL94 V-0	2	Through Hole	Header	2.9 A	Gold	30 Áin	0.76 Ám	Mating Flange	5.6 mm	0.22 in	Male Pin	0.078 in	1.98 mm			3 µin	0.076 µm
Samtec Inc. TFM-120-02-STL-D-DS	Push-Pull	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Black	Solder	Shrouded - 4 Wall	Phosphor Bronze	40	All	Gold	Square	0.05 in	1.27 mm	Board to Board Cable	3.33 mm	0.131 in	UL94 V-0	2	Surface Mount	Header	2.9 A	Tin	30 Áin	0.76 Ám	Mating Flange	5.6 mm	0.22 in	Male Pin
Samtec Inc. TFM-120-02-L-D-A-TR	Push-Pull	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Black	Solder	Shrouded - 4 Wall	Phosphor Bronze	40	All	Gold	Square	0.05 in	1.27 mm	Board to Board Cable	3.33 mm	0.131 in	UL94 V-0	2	Surface Mount	Header	2.9 A	Tin	15 µin	0.38 µm	Board Guide	5.6 mm	0.22 in	Male Pin
Samtec Inc. TFM-120-02-L-S-LC	Push-Pull			275 VAC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Black	Solder	Shrouded - 4 Wall	Phosphor Bronze	20	All	Gold	Square	0.05 in	1.27 mm	Board to Board Cable	3.33 mm	0.131 in	UL94 V-0	1	Surface Mount	Header	3.2 A	Tin	15 µin	0.38 µm		5.6 mm	0.22 in	Male Pin
Samtec Inc. TFM-120-01-LM-D	Push-Pull	0.05 in	1.27 mm	275 VAC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Black	Solder	Shrouded - 4 Wall	Phosphor Bronze	40	All	Gold	Square	0.05 in	1.27 mm	Board to Board Cable	3.33 mm	0.131 in	UL94 V-0	2	Through Hole	Header	2.9 A	Tin	15 µin	0.38 µm		5.6 mm	0.22 in	Male Pin	0.078 in	1.98 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.62

Description

General part information

TFM-120 Series

Connector Header Through Hole 40 position 0.050" (1.27mm)
