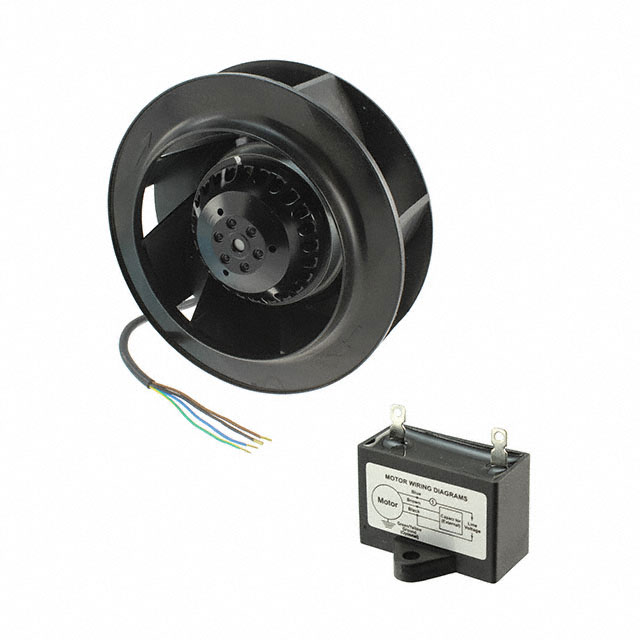

UF190APA12-H1C2A-B1

Active

Mechatronics Fan Group

FAN IMP 190X70MM 115VAC TACH

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN IMP 190X70MM 115VAC TACH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12	$ 107.58

General part information

Fan Motorized Impellers 115VAC Round - 190mm Dia Ball 370.0 CFM (10.36m³/min) 4 Wire Leads

Technical documentation and resources

Specification	UF190APA12-H1C2A-B1	UF190 Series

Air Flow	10.36 mł/min	6.92 - 10.36 m³/min
Air Flow	370 CFM	247 - 370 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.54 A	0.54 A
Fan Type	Motorized Impellers	Motorized Impellers
Features	Speed Sensor (Tach), Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Speed Sensor (Tach)
Material - Blade	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material - Frame	Aluminum	Aluminum
Noise	63 dB	63 dB
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	65 W	65 W
RPM	2700 RPM	2700 RPM
Size / Dimension	Round	Round
Size / Dimension [diameter]	190 mm	190 mm
Static Pressure	298.9 Pa	298.9 - 373.6 Pa
Static Pressure	1.2 in H2O	1.2 - 1.5 in H2O
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated	115 VAC	115 VAC
Weight	1.2 kg	1.2 - 1.5 kg
Weight	2.7 lbs	2.7 - 3.2 lbs
Width [y]	70 mm	70 mm

Part	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Noise	Material - Frame	Current Rating (Amps)	Termination	Features	Size / Dimension	Size / Dimension [diameter]	Air Flow	Air Flow	Material - Blade	Fan Type	Static Pressure	Static Pressure	Bearing Type	Weight	Weight	Voltage - Rated	Approval Agency	RPM
Mechatronics Fan Group UF190APA12-H1C2F	70 mm	50 °C	-40 °C	-40 °C	50 °C	65 W	63 dB	Aluminum	0.54 A	4 Wire Leads	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Round	190 mm	6.92 m³/min	247 CFM	Nylon, Polyamide (PA)	Motorized Impellers	1.5 in H2O	373.6 Pa	Ball	3.2 lbs	1.5 kg	115 VAC	CE, cUL, TUV, UL	2700 RPM
Mechatronics Fan Group UF190APA12-H1C2A-B1	70 mm	50 °C	-40 °C	-40 °C	50 °C	65 W	63 dB	Aluminum	0.54 A	4 Wire Leads	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	Round	190 mm	10.36 mł/min	370 CFM	Nylon, Polyamide (PA)	Motorized Impellers	1.2 in H2O	298.9 Pa	Ball	2.7 lbs	1.2 kg	115 VAC	CE, cUL, TUV, UL	2700 RPM
Mechatronics Fan Group UF190APA12-H1C2A	70 mm	50 °C	-40 °C	-40 °C	50 °C	65 W	63 dB	Aluminum	0.54 A	4 Wire Leads	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Round	190 mm	10.36 mł/min	370 CFM	Nylon, Polyamide (PA)	Motorized Impellers	1.2 in H2O	298.9 Pa	Ball	2.7 lbs	1.2 kg	115 VAC	CE, cUL, TUV, UL	2700 RPM
