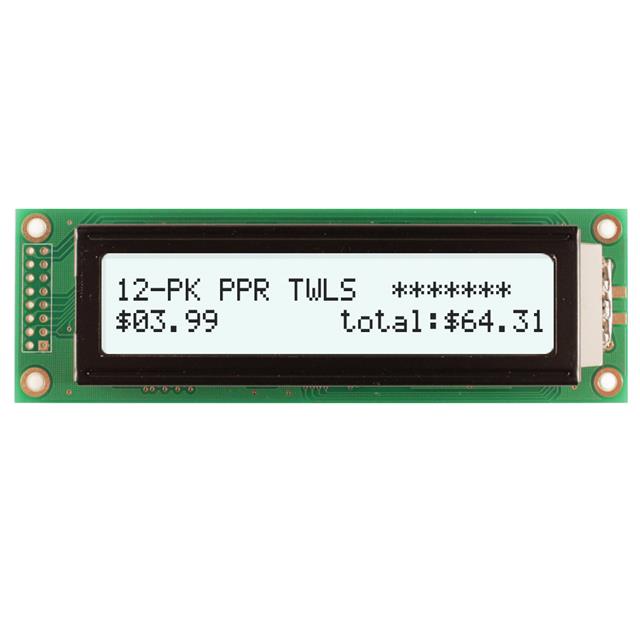

NHD-0224BZ1-FSW-FBW

Active

Newhaven Display Intl

LCD MOD 48DIG 24X2 TRANSFLCT WHT

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD MOD 48DIG 24X2 TRANSFLCT WHT

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-0224BZ1-FSW-FBW

Background Color	White
Backlight	LED - White
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [y]	2.7 mm
Character Size [z]	5.55 mm
Controller Type	KS0066U
Display Format [x]	24
Display Format [y]	2
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Size [y]	0.5 mm
Dot Size [z]	0.65 mm
Interface	Parallel
Number of Characters	48
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	116 mm
Outline L x W x H [y]	37 mm
Outline L x W x H [z]	13.5 mm
Text Color	Black
Viewing Area [x]	83 mm
Viewing Area [y]	18.6 mm
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.7 V

Part	Text Color	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Background Color	Viewing Area [y]	Viewing Area [x]	Character Format [y]	Character Format [x]	Display Format [y]	Display Format [x]	Dot Size [y]	Dot Size [z]	Number of Characters	Character Size [z]	Character Size [y]	Backlight	Interface	Display Mode	Operating Temperature [Min]	Operating Temperature [Max]	Controller Type
Newhaven Display Intl NHD-0224BZ1-FSW-FBW	Black	116 mm	13.5 mm	37 mm	FSTN - Film Super-Twisted Nematic	5.5 V	4.7 V	White	18.6 mm	83 mm	8 Dots	5 Dots	2	24	0.5 mm	0.65 mm	48	5.55 mm	2.7 mm	LED - White	Parallel	Transflective	-20 C	70 °C	KS0066U
Newhaven Display Intl NHD-0224BZ-FL-GBW	Blue	116 mm	13.5 mm	37 mm	STN - Super-Twisted Nematic	5.5 V	4.7 V	Green	18.6 mm	83 mm	8 Dots	5 Dots	2	24	0.5 mm	0.65 mm	48	5.55 mm	2.7 mm		Parallel	Transflective	-20 C	70 °C	KS0066U
Newhaven Display Intl NHD-0224BZ-FL-YBW	Blue	116 mm	13.5 mm	37 mm	STN - Super-Twisted Nematic	5.5 V	4.7 V	Green	18.6 mm	83 mm	8 Dots	5 Dots	2	24	0.5 mm	0.65 mm	48	5.55 mm	2.7 mm		Parallel	Transflective	-20 C	70 °C	KS0066U
Newhaven Display Intl NHD-0224BZ-FSW-GBW	Blue	116 mm	13.5 mm	37 mm	STN - Super-Twisted Nematic	5.5 V	4.7 V	White	18.6 mm	83 mm	8 Dots	5 Dots	2	24	0.5 mm	0.65 mm	48	5.55 mm	2.7 mm	LED - White	Parallel	Transflective	-20 C	70 °C	KS0066U

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - White Parallel 116.00mm x 37.00mm x 13.50mm
