Specification	SC-100-SM

Body Finish	Nickel
Body Material	Brass
Cable Group	LMR-100
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	6000 MHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Crimp

SC-100 Series

Part	Contact Termination	Connector Style	Number of Ports	Cable Group	Housing Color	Impedance	Fastening Type	Shield Termination	Connector Type	Frequency - Max	Mounting Type	Center Contact Material	Mating Cycles	Body Material	Operating Temperature (Max)	Operating Temperature (Min)	Center Contact Plating	Dielectric Material	Body Finish	Voltage Rating	Mounting Feature
McGill Microwave Systems SC-100-SM	Solder	SMA	1	LMR-100	Silver	50 Ohm	Threaded	Crimp	Male Pin Plug	6000 MHz	Free Hanging (In-Line)	Brass	500 cycles	Brass	125 °C	-40 °C	Gold	Polytetrafluoroethylene (PTFE)	Nickel
McGill Microwave Systems SC-100-NF
McGill Microwave Systems SC-100-SF	Solder	SMA	1	LMR-100A	Silver	50 Ohm	Threaded	Crimp	Female Socket Jack	6000 MHz	Free Hanging (In-Line)	Beryllium Copper	500 cycles	Brass	125 °C	-55 °C	Gold	Polytetrafluoroethylene (PTFE)	Nickel	500 V

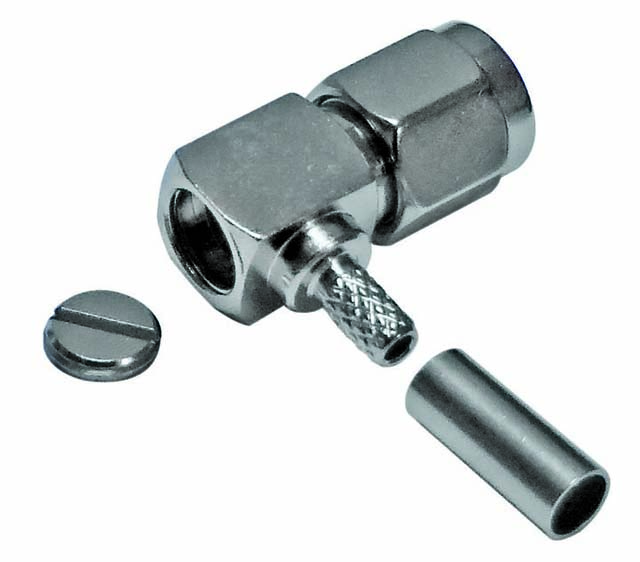

McGill Microwave Systems SC-100-SM-RA	Solder	SMA	1	LMR-100A	Silver	50 Ohm	Threaded	Crimp	Male Pin Plug	6000 MHz	Free Hanging (In-Line) Right Angle	Brass	500 cycles	Brass	125 °C	-40 °C	Gold	Polytetrafluoroethylene (PTFE)	Nickel
McGill Microwave Systems SC-100-NF-BH	Push On	N Type	1	LMR-100	Silver	50 Ohm	Threaded	Crimp	Female Socket Jack	2.5 GHz	Panel Mount	Beryllium Copper Brass		Brass	85 °C	-40 °C	Gold	Polytetrafluoroethylene (PTFE)	Nickel	1000 V	Bulkhead Front Side Nut
McGill Microwave Systems SC-100-TM	Solder	TNC	1	LMR-100A	Silver	50 Ohm	Threaded	Crimp	Male Pin Plug	6000 MHz	Free Hanging (In-Line)	Beryllium Copper Brass	500 cycles	Brass	125 °C	-40 °C	Gold	Polytetrafluoroethylene (PTFE)	Nickel
McGill Microwave Systems SC-100-MCXF	Solder	MCX	1	LMR-100	Gold	50 Ohm	Snap-On	Crimp	Female Socket Jack	6000 MHz	Free Hanging (In-Line)	Beryllium Copper	500 cycles	Brass	125 °C	-55 °C	Gold	Polytetrafluoroethylene (PTFE)	Gold	500 V
McGill Microwave Systems SC-100-NM
