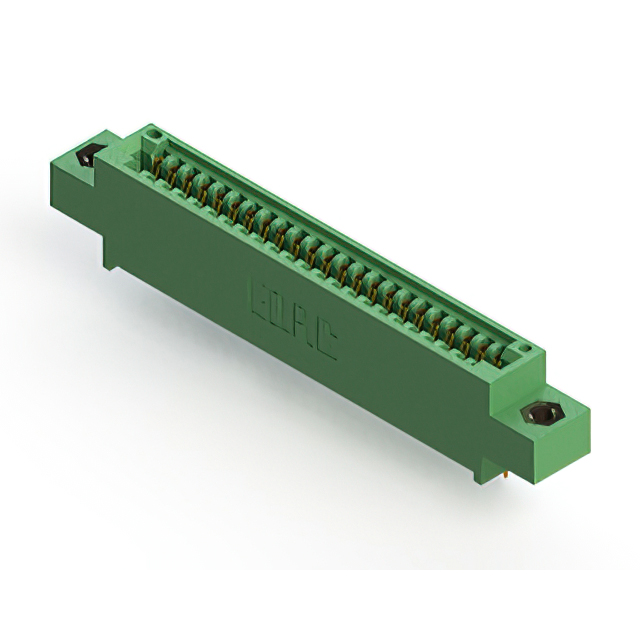

845-023-524-607
ActiveEDAC Inc.
CONN EDGE SINGLE FML 23POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-023-524-607
ActiveEDAC Inc.
CONN EDGE SINGLE FML 23POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-023-524-607 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 23 |
| Number of Positions/Bay/Row [custom] | 23 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
845-023 Series
...
| Part | Termination | Gender | Card Type | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Flange Feature | Flange Feature | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Pitch [x] | Pitch [x] | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Type | Material - Insulation | Color | Number of Positions/Bay/Row [custom] | Contact Type | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Wire Wrap | Female | Non Specified - Single Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 125 °C | -40 °C | Single | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | Gold | Through Hole | Diallyl Phthalate (DAP) | Green | 23 | Cantilever | 23 | ||
EDAC Inc. | Solder | Female | Non Specified - Single Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 125 °C | -40 °C | Single | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | Gold | Through Hole | Diallyl Phthalate (DAP) | Green | 23 | Cantilever | 23 | |||||
EDAC Inc. | Solder | Female | Non Specified - Single Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 3.25 mm | 0.128 in | 125 °C | -40 °C | Single | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | Gold | Through Hole Right Angle | Diallyl Phthalate (DAP) | Green | 23 | Cantilever | 23 | |||
EDAC Inc. | Wire Wrap | Female | Non Specified - Single Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | M3 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Single | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | Gold | Through Hole | Diallyl Phthalate (DAP) | Green | 23 | Cantilever | 23 | ||||
EDAC Inc. | Solder | Female | Non Specified - Single Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Floating Bobbin Top Mount Opening | 125 °C | -40 °C | Single | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | Gold | Through Hole | Diallyl Phthalate (DAP) | Green | 23 | Cantilever | 23 | 2.95 mm | 0.116 in | ||
EDAC Inc. | Wire Wrap | Female | Non Specified - Single Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Flush Mount Top Opening Unthreaded | 125 °C | -40 °C | Single | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | Gold | Through Hole | Diallyl Phthalate (DAP) | Green | 23 | Cantilever | 23 | 3.96 mm | 0.156 in | ||
EDAC Inc. | Solder | Female | Non Specified - Single Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Single | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | Gold | Through Hole | Diallyl Phthalate (DAP) | Green | 23 | Cantilever | 23 | ||||
EDAC Inc. | Solder | Female | Non Specified - Single Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | M3 Threaded Insert Top Mount Opening | 125 °C | -40 °C | Single | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | Gold | Through Hole | Diallyl Phthalate (DAP) | Green | 23 | Cantilever | 23 | ||||
EDAC Inc. | Wire Wrap | Female | Non Specified - Single Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Floating Bobbin Top Mount Opening | 125 °C | -40 °C | Single | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | Gold | Through Hole | Diallyl Phthalate (DAP) | Green | 23 | Cantilever | 23 | 2.95 mm | 0.116 in | ||
EDAC Inc. | Solder | Female | Non Specified - Single Edge | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Top Mount Opening Unthreaded | 125 °C | -40 °C | Single | 2.54 mm | 0.1 in | 1 | 10 Áin | 0.25 Ám | Gold | Through Hole | Diallyl Phthalate (DAP) | Green | 23 | Cantilever | 23 | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-023 Series
23 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
