25063/1 BK005

Active

ALPHA WIRE

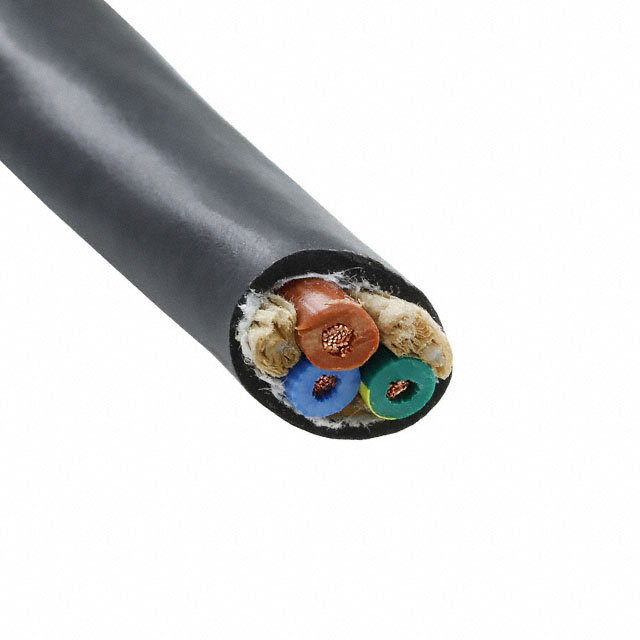

CABLE 3COND 18AWG BLACK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 18AWG BLACK 100'

Technical Specifications

Parameters and characteristics for this part

Specification	25063/1 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	6.05 mm
Jacket (Insulation) Diameter [diameter]	0.238 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Voltage	300 V
Wire Gauge	18 AWG

CABLE 3COND 18AWG BLACK 100'

Part	Number of Conductors	Cable Type	Conductor Material	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Ratings	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Voltage	Conductor Insulation
ALPHA WIRE 25063/1 BK005	3	Multi-Conductor	Copper, Tinned	Black	16	30 AWG	Polyurethane (PU)	6.05 mm	0.238 in	Biological Compatibility, Rip Cord	ISO 10993, UL Style 20668	30.5 m	100 ft	-30 ░C	90 °C	18 AWG	300 V	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Conductor Multi-Conductor Cable Black 18 AWG 100.0' (30.5m)
