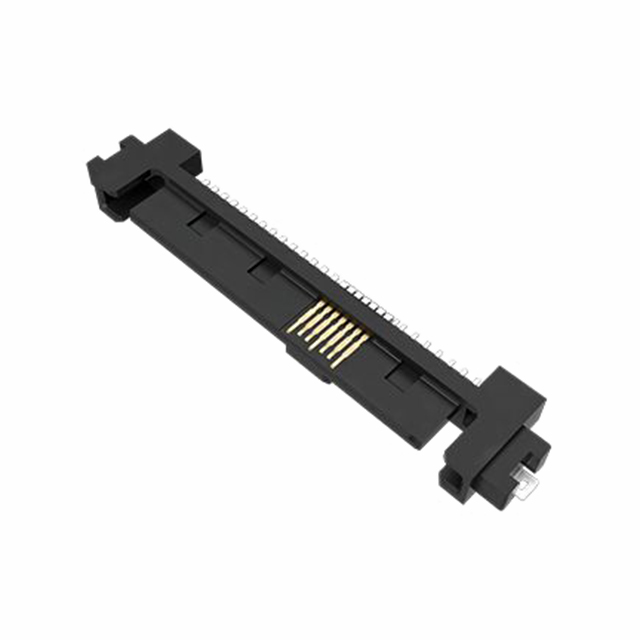

SAS4M2130021TR
ActiveAmphenol ICC (FCI)
SAS 4.0 CONNECTORS, 29 POSITION,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SAS4M2130021TR |
|---|---|
| Connector Style | Plug |
| Connector Type | SAS |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Solder Retention, Board Guide |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 29 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.33 | |
| 10 | $ 7.93 | |||
| 25 | $ 7.16 | |||
| 50 | $ 6.64 | |||
| 100 | $ 6.28 | |||
| 250 | $ 5.83 | |||
| Tape & Reel (TR) | 600 | $ 5.55 | ||
| 1200 | $ 4.82 | |||
| 1800 | $ 4.77 | |||
Description
General part information
SAS4M213 Series
29 Position SAS Plug Connector Solder Surface Mount, Right Angle
