Specification	VS-SD400C20C

Current - Average Rectified (Io)	800 A
Current - Reverse Leakage	15 mA
Mounting Type	Clamp On

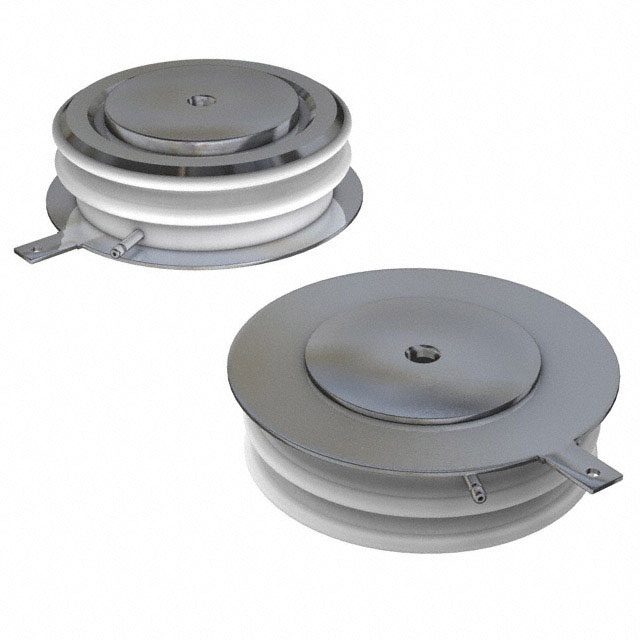

Package / Case	A-PUK, DO-200AA
Package Name	A-PUK, DO-200AA
Speed	Standard Recovery
Speed - Fast Recovery (Minimum)	200 mA, 500 ns
Speed - Recovery Current	200 mA, 200 mA
Speed - Recovery Time	500 ns
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	2000 V
Voltage - Forward (Vf) (Max)	1.86 V, 1.86 V

SD400 Series

Part	Current - Average Rectified (Io)	Technology	Current - Reverse Leakage	Speed - Fast Recovery (Minimum)	Speed	Speed - Recovery Current	Speed - Recovery Time	Mounting Type	Voltage - DC Reverse (Vr) (Max)	Voltage - Forward (Vf) (Max)	Package / Case	Package Name	Operating Temperature - Junction (Min)	Operating Temperature - Junction (Max)
Vishay General Semiconductor - Diodes Division VS-SD400C04C	800 A	Standard	15 mA	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Clamp On	400 V	1.86 V 1.86 V	A-PUK DO-200AA	A-PUK DO-200AA
Vishay General Semiconductor - Diodes Division VS-SD400N24PC	400 A	Standard	15 mA	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Stud Mount	2400 V	1.62 V	DO-205AB DO-9 Stud	DO-205AB (DO-9)	-40 °C	190 °C
Vishay General Semiconductor - Diodes Division VS-SD400N16PC	400 A	Standard	15 mA	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Stud Mount	1600 V		DO-205AB DO-9 Stud	DO-205AB (DO-9)	-40 °C	190 °C
Vishay General Semiconductor - Diodes Division VS-SD400C08C	800 A	Standard	15 mA	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Clamp On	800 V	1.86 V 1.86 V	A-PUK DO-200AA	A-PUK DO-200AA
Vishay General Semiconductor - Diodes Division VS-SD400R16PC	400 A	Standard		200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Stud Mount	1600 V	1.62 V	DO-205AB DO-9 Stud	DO-205AB (DO-9)	-40 °C	190 °C
Vishay General Semiconductor - Diodes Division VS-SD400N20PC	400 A	Standard	15 mA	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Stud Mount	2000 V	1.62 V	DO-205AB DO-9 Stud	DO-205AB (DO-9)	-40 °C	190 °C
Vishay General Semiconductor - Diodes Division VS-SD400C16C	800 A	Standard	15 mA	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Clamp On	1600 V	1.86 V 1.86 V	A-PUK DO-200AA	A-PUK DO-200AA
Vishay General Semiconductor - Diodes Division VS-SD400R24PC	400 A	Standard	15 mA	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Stud Mount	2400 V	1.62 V	DO-205AB DO-9 Stud	DO-205AB (DO-9)	-40 °C	190 °C
Vishay General Semiconductor - Diodes Division VS-SD400C24C	800 A	Standard	15 mA	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Clamp On	2400 V	1.86 V 1.86 V	A-PUK DO-200AA	A-PUK DO-200AA
Vishay General Semiconductor - Diodes Division VS-SD400C20C	800 A	Standard	15 mA	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	Clamp On	2000 V	1.86 V 1.86 V	A-PUK DO-200AA	A-PUK DO-200AA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Hockey-PUK Mounting Instr

VS-SD400C20C | Datasheet
