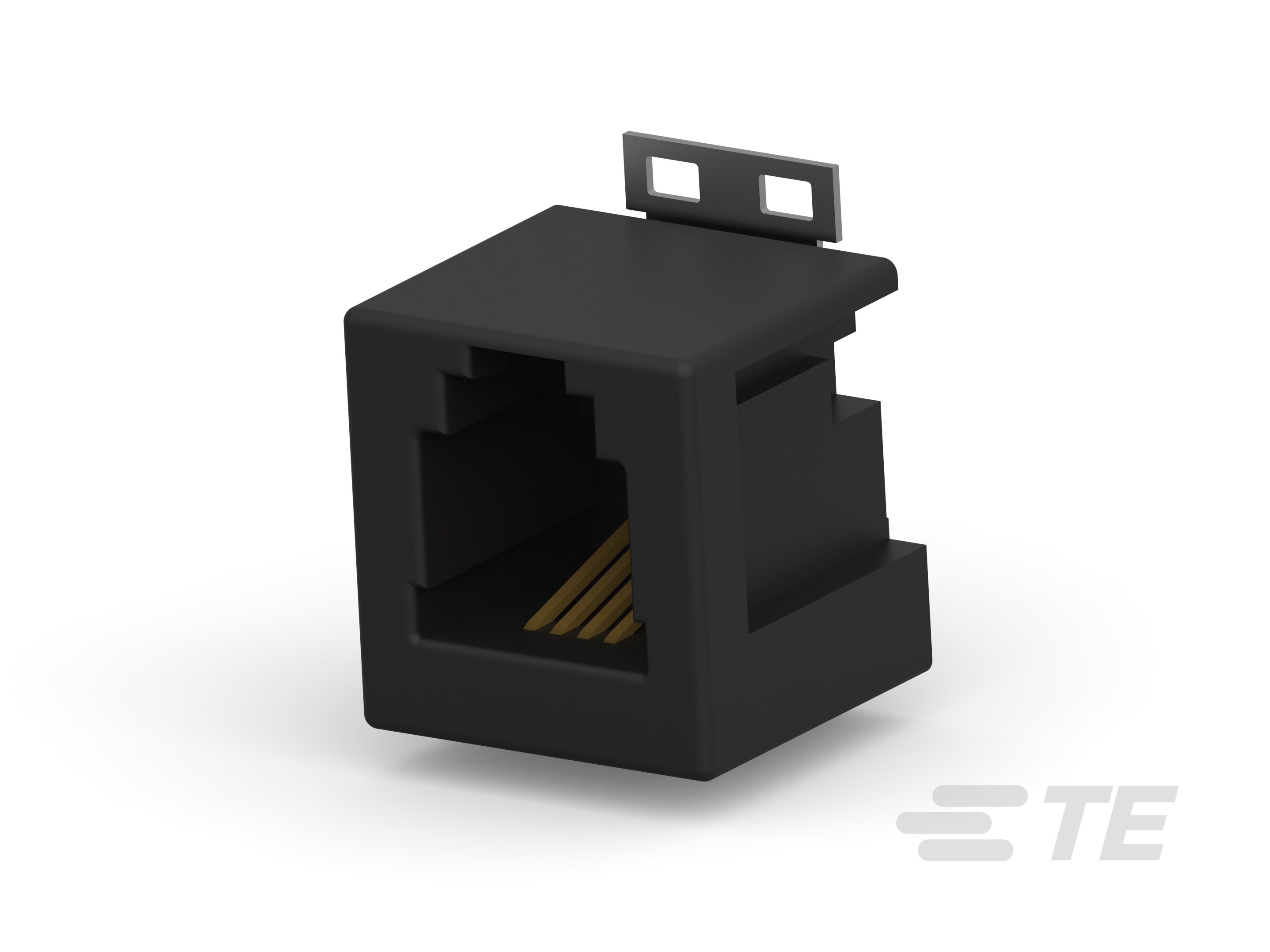

Specification	1-338084-6

Connector Type	RJ10, RJ22, RJ9, Jack
Contact Finish	Gold
Contact Material	Phosphor Bronze
Features	Solder Retention
Housing Material	PA9T, Polyamide, Nylon 9T, Glass Filled
LED Color	Does Not Contain LED
Mounting Type	Surface Mount
Number of Contacts	4
Number of Ports	1
Number of Positions	4
Number of Rows	1
Orientation	Vertical
Ratings	Cat3
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Solder

338084 Series

Part	Number of Positions	Connector Type	Number of Contacts	Orientation	Contact Finish	LED Color	Shielding	Termination	Tab Direction	Mounting Type	Number of Ports	Ratings	Contact Material	Number of Rows	Features	Housing Material
TE Connectivity AMP Connectors 1-338084-6	4	Jack RJ10 RJ22 RJ9	4	Vertical	Gold	Does Not Contain LED	Unshielded	Solder	User Selectable	Surface Mount	1	Cat3	Phosphor Bronze	1	Solder Retention	Glass Filled Nylon 9T PA9T Polyamide
TE Connectivity AMP Connectors 2-338084-3	4	Jack RJ10 RJ22 RJ9	4	Vertical	Gold	Does Not Contain LED	Unshielded	Solder	User Selectable	Surface Mount	1	Cat3	Phosphor Bronze	1	Solder Retention	Glass Filled Nylon 9T PA9T Polyamide
