Specification	XC7Z014S-1CLG484I

Architecture	FPGA, MCU
Connectivity	USART, SD, USB OTG, CANbus, MMC, EBI, UART, Ethernet, SPI, I2C, SDIO, EMI
Core Processor	Single ARM® Cortex®-A9 MPCore™ with CoreSight™
Number of I/O	200
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C

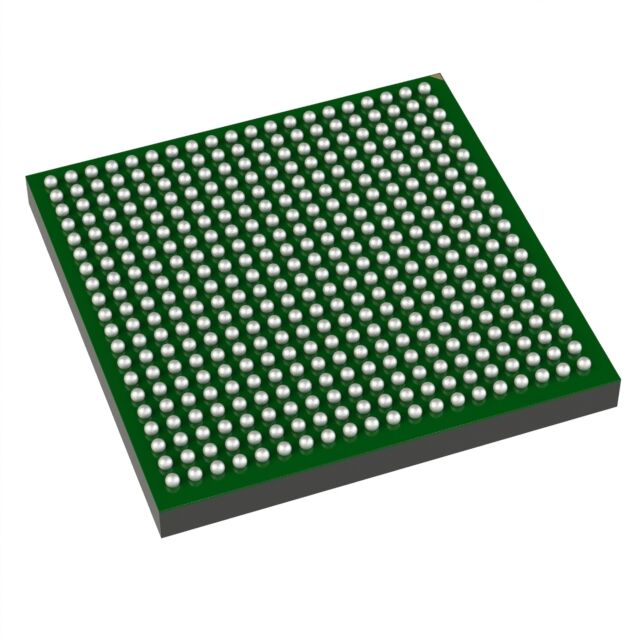

Package / Case	CSPBGA, 484-LFBGA
Package Length	19 mm
Package Name	484-CSPBGA
Package Width	19 mm
Peripherals	DMA
Primary Attributes	65K Logic Cells, Artix™-7 FPGA
RAM Size	256 KB
Speed	667 MHz

XC7Z014 Series

Part	Number of I/O	Peripherals	RAM Size	Speed	Connectivity	Package Length	Package Name	Package Width	Package / Case	Core Processor	Operating Temperature (Max)	Operating Temperature (Min)	Architecture	Primary Attributes
AMD / Xilinx XC7Z014S-1CLG400C	125	DMA	256 KB	667 MHz	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	17 mm	400-CSPBGA	17 mm	400-LFBGA CSPBGA	Single ARM® Cortex®-A9 MPCore™ with CoreSight™	85 °C	0 °C	FPGA MCU	65K Logic Cells Artix™-7 FPGA
AMD / Xilinx XC7Z014S-2CLG484I	200	DMA	256 KB	766 MHz	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	19 mm	484-CSPBGA	19 mm	484-LFBGA CSPBGA	Single ARM® Cortex®-A9 MPCore™ with CoreSight™	100 °C	-40 °C	FPGA MCU	65K Logic Cells Artix™-7 FPGA
AMD / Xilinx XC7Z014S-1CLG484C	200	DMA	256 KB	667 MHz	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	19 mm	484-CSPBGA	19 mm	484-LFBGA CSPBGA	Single ARM® Cortex®-A9 MPCore™ with CoreSight™	85 °C	0 °C	FPGA MCU	65K Logic Cells Artix™-7 FPGA
AMD / Xilinx XC7Z014S-2CLG484E	200	DMA	256 KB	766 MHz	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	19 mm	484-CSPBGA	19 mm	484-LFBGA CSPBGA	Single ARM® Cortex®-A9 MPCore™ with CoreSight™	100 °C	0 °C	FPGA MCU	65K Logic Cells Artix™-7 FPGA
AMD / Xilinx XC7Z014S-1CLG484I	200	DMA	256 KB	667 MHz	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	19 mm	484-CSPBGA	19 mm	484-LFBGA CSPBGA	Single ARM® Cortex®-A9 MPCore™ with CoreSight™	100 °C	-40 °C	FPGA MCU	65K Logic Cells Artix™-7 FPGA
AMD / Xilinx XC7Z014S-2CLG400I	125	DMA	256 KB	766 MHz	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	17 mm	400-CSPBGA	17 mm	400-LFBGA CSPBGA	Single ARM® Cortex®-A9 MPCore™ with CoreSight™	100 °C	-40 °C	FPGA MCU	65K Logic Cells Artix™-7 FPGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
