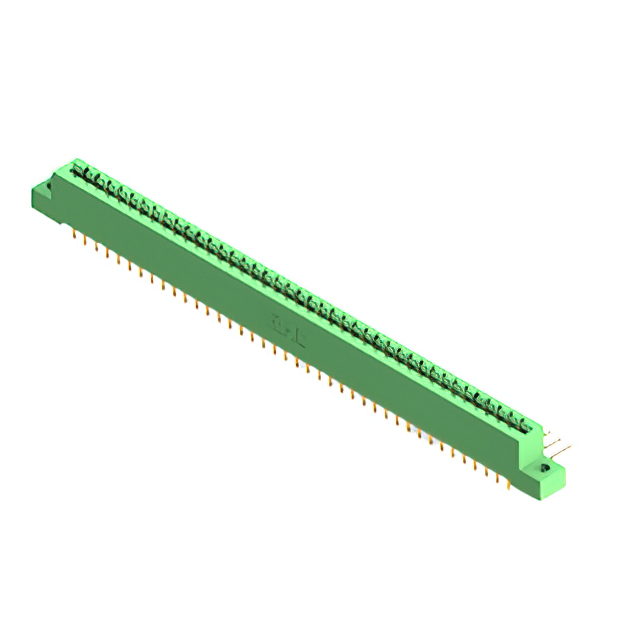

837-080-558-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 80POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-080-558-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 80POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-080-558-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 80 |
| Number of Positions/Bay/Row [custom] | 40 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
837-080 Series
...
| Part | Material - Insulation | Termination | Termination Rows | Mounting Type | Color | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Number of Positions/Bay/Row [custom] | Contact Finish | Contact Material | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Gender | Number of Positions | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Diallyl Phthalate (DAP) | Solder | 2 | Through Hole | Green | Cantilever | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Dual Edge | 40 | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | 80 | 0.156 in | 3.96 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | Solder Eyelet(s) | 2 | Through Hole | Green | Cantilever | M3 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 40 | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | 80 | 0.156 in | 3.96 mm | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Wire Wrap | 2 | Through Hole | Green | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 40 | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | 80 | 0.156 in | 3.96 mm | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Solder | 2 | Through Hole | Green | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 40 | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | 80 | 0.156 in | 3.96 mm | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Solder | 2 | Through Hole Right Angle | Green | Cantilever | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Non Specified - Dual Edge | 40 | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | 80 | 0.156 in | 3.96 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | Solder Eyelet(s) | 2 | Through Hole | Green | Cantilever | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | 40 | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | 80 | 0.156 in | 3.96 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | Solder | 2 | Through Hole Right Angle | Green | Cantilever | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | 40 | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | 80 | 0.156 in | 3.96 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | Wire Wrap | 2 | Through Hole | Green | Cantilever | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 40 | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | 80 | 0.156 in | 3.96 mm | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Solder | 2 | Through Hole Right Angle | Green | Cantilever | M3 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 40 | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | 80 | 0.156 in | 3.96 mm | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Solder | 2 | Through Hole Right Angle | Green | Cantilever | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Non Specified - Dual Edge | 40 | Gold | Copper Alloy | 2 | 125 °C | -40 °C | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Female | 80 | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 105.97 | |
Description
General part information
837-080 Series
80 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
