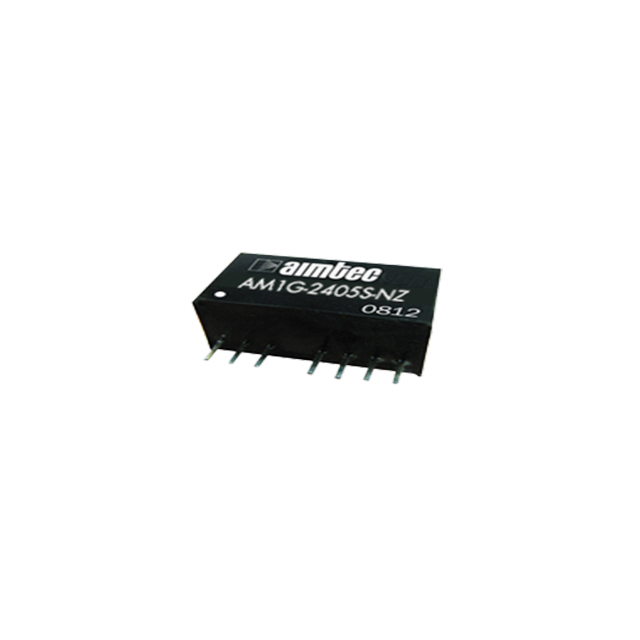

AM1G-2405S-NZ

Active

aimtec

DC DC CONVERTER 5V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1G-2405S-NZ

Active

aimtec

DC DC CONVERTER 5V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 11.91
		5	$ 11.55
		10	$ 11.19
		22	$ 10.84
		44	$ 10.30
		88	$ 9.79

Description

General part information

AM1G Series

Isolated Module DC DC Converter 1 Output 5V 200mA 18V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM1G-2405S-NZ	AM1G Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	-	CE, cURus, cULus, cURus, CE, UL
Current - Output (Max)	-	33 - 69 mA
Current - Output (Max) [Max]	200 mA	42 - 200 mA
Efficiency	77 %	68 - 79 %
Features	Remote On/Off	Remote On/Off
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	100 °C	85 - 100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-SIP Module	8-SIP Module
Package / Case	7 Leads	7 Leads
Power (Watts)	-	1 - 999 mW
Size / Dimension [x]	22 mm	21.9 - 22 mm
Size / Dimension [x]	0.87 in	0.86 - 0.87 in
Size / Dimension [y]	9.5 mm	9.2 - 9.5 mm
Size / Dimension [y]	0.37 "	0.36 - 0.37 "
Size / Dimension [z]	0.49 in	0.44 - 0.49 "
Size / Dimension [z]	12.5 mm	11.1 - 12.5 mm
Supplier Device Package	8-SIP	8-SIP
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	9 - 75 V
Voltage - Input (Min) [Min]	18 V	4.5 - 36 V
Voltage - Isolation	1.5 kV	1.5 - 3000 V
Voltage - Output 1	5 V	5 - 24 V
Voltage - Output 1	-	7.2 - 15 V
Voltage - Output 1	-	-15 - -7.2 V
Voltage - Output 2	-	-15 - -7.2 V

AM1G Series

DC DC CONVERTER 12V 996MW

Part	Voltage - Output 1	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Package / Case	Package / Case	Type	Current - Output (Max) [Max]	Number of Outputs	Approval Agency	Applications	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max)	Voltage - Output 2	Supplier Device Package
aimtec AM1G-4812SH30Z	12 V	996 mW	72 V	36 V	3000 V	8-SIP Module	7 Leads	Isolated Module	83 mA	1	CE, cURus	ITE (Commercial)	70 %	85 °C	-40 °C	Through Hole	0.44 "	0.36 "	21.9 mm	9.2 mm	11.2 mm	0.86 in
aimtec AM1G-4805S-NZ	5 V		75 V	36 V	1.5 kV	8-SIP Module		Isolated Module	200 mA	1	cULus, cURus	ITE (Commercial)	76 %	100 °C	-40 °C	Through Hole	0.47 "	0.37 "	22 mm	9.5 mm	12 mm	0.87 in	Remote On/Off
aimtec AM1G-1205SZ	5 V		18 V	9 V	1000 V	8-SIP Module		Isolated Module	200 mA	1	CE, cURus, UL	ITE (Commercial)	72 %	85 °C	-40 °C	Through Hole	0.44 "	0.36 "	21.9 mm	9.2 mm	11.2 mm	0.86 in	Remote On/Off
aimtec AM1G-0509SZ	9 V	999 mW	9 V	4.5 V	3000 V	8-SIP Module	7 Leads	Isolated Module		1	CE, cURus	ITE (Commercial)	70 %	85 °C	-40 °C	Through Hole	0.44 "	0.36 "	21.9 mm	9.2 mm	11.2 mm	0.86 in
aimtec AM1G-4805SH30Z	5 V		72 V	36 V	3000 V	8-SIP Module	7 Leads	Isolated Module	200 mA	1	CE, cURus	ITE (Commercial)	68 %	85 °C	-40 °C	Through Hole	0.44 "	0.36 "	21.9 mm	9.2 mm	11.2 mm	0.86 in
aimtec AM1G-2405SZ	5 V		36 V	18 V	1000 V	8-SIP Module	7 Leads	Isolated Module	200 mA	1	CE, cURus	ITE (Commercial)	72 %	85 °C	-40 °C	Through Hole	0.44 "	0.36 "	21.9 mm	9.2 mm	11.2 mm	0.86 in
aimtec AM1G-0512SH30-NZ	12 V	996 mW	9 V	4.5 V	3000 V	8-SIP Module	7 Leads	Isolated Module	83 mA	1		ITE (Commercial)	76 %	100 °C	-40 °C	Through Hole	0.49 in	0.37 "	22 mm	9.5 mm	12.5 mm	0.87 in
aimtec AM1G-0507DZ			9 V	4.5 V	1000 V	8-SIP Module		Isolated Module		2	CE, cURus, UL	ITE (Commercial)	69 %	85 °C	-40 °C	Through Hole	0.44 "	0.36 "	21.9 mm	9.2 mm	11.1 mm	0.86 in	Remote On/Off	7.2 V	-7.2 V	69 mA	-7.2 V
aimtec AM1G-1205S-NZ	5 V		18 V	9 V	1.5 kV	8-SIP Module		Isolated Module	200 mA	1	cULus, cURus	ITE (Commercial)	77 %	100 °C	-40 °C	Through Hole	0.47 "	0.37 "	22 mm	9.5 mm	12 mm	0.87 in	Remote On/Off
aimtec AM1G-2405S-NZ	5 V		36 V	18 V	1.5 kV	8-SIP Module	7 Leads	Isolated Module	200 mA	1		ITE (Commercial)	77 %	100 °C	-40 °C	Through Hole	0.49 in	0.37 "	22 mm	9.5 mm	12.5 mm	0.87 in	Remote On/Off					8-SIP
