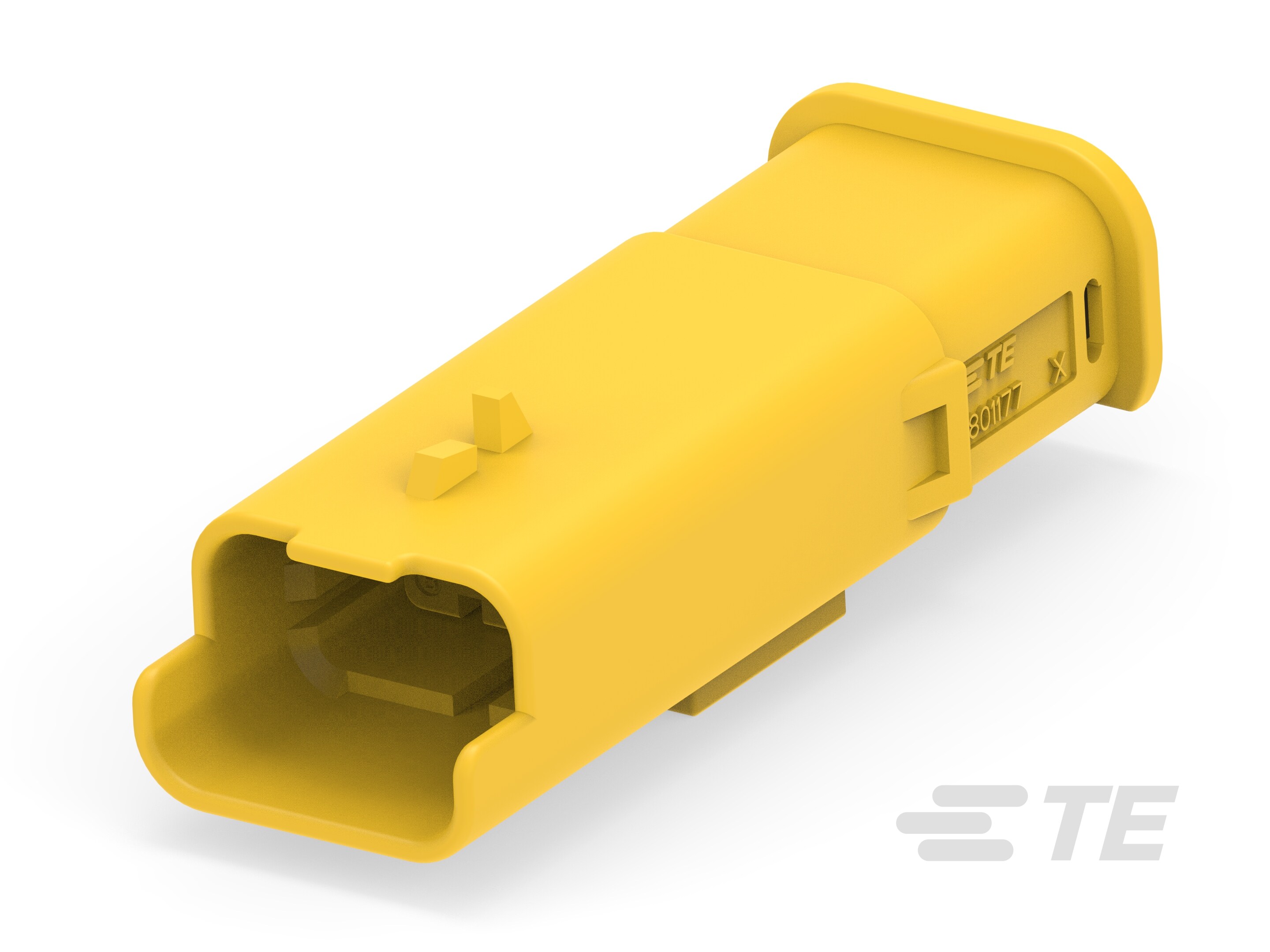

Specification	1801177-4

Color	Yellow
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-40 °C
Pitch	0.131 in

1801177 Series

Part	Pitch	Insulation Material	Fastening Type	Contact Termination	Mounting Type	Number of Rows	Features	Connector Type	Color	Number of Positions	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)
TE Connectivity AMP Connectors 1801177-1	0.131 in	Glass Filled Polybutylene Terephthalate (PBT)	Locking Ramp	Crimp	Free Hanging (In-Line)	1	Sealed	Plug	Black	3	Male Pin	-40 °C	150 °C
TE Connectivity AMP Connectors 1801177-4	0.131 in	Glass Filled Polybutylene Terephthalate (PBT)	Locking Ramp	Crimp	Free Hanging (In-Line)	1	Sealed	Plug	Yellow	3	Male Pin	-40 °C	150 °C
TE Connectivity AMP Connectors 1801177-3	0.131 in	Glass Filled Polybutylene Terephthalate (PBT)	Locking Ramp	Crimp	Free Hanging (In-Line)	1	Sealed	Plug	Gray	3	Male Pin	-40 °C	150 °C
TE Connectivity AMP Connectors 1801177-2	0.131 in	Glass Filled Polybutylene Terephthalate (PBT)	Locking Ramp	Crimp	Free Hanging (In-Line)	1	Sealed	Plug	Blue	3	Male Pin	-40 °C	150 °C
