0801702
ActivePhoenix Contact

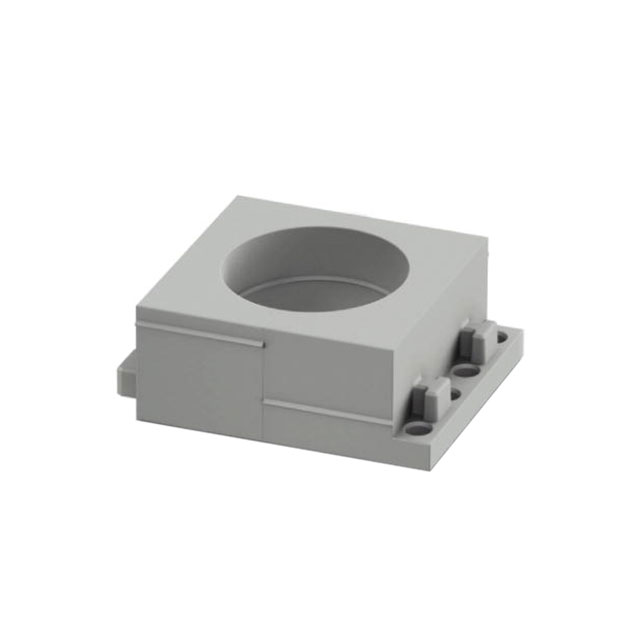

FRAME GROMMET ELASTOMER GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0801702
ActivePhoenix Contact
FRAME GROMMET ELASTOMER GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0801702 | CES-LTPG Series |
|---|---|---|
| Accessory Type | - | Hole Plug |
| Bushing, Grommet Type | Frame Grommet | Frame Grommet |
| Color | Gray | Gray |
| Diameter - Inside | - | 31 - 32 mm |
| Diameter - Inside | - | 18 - 24 mm |
| Diameter - Inside [Max] [diameter] | 29 mm | 15 - 31 mm |
| Diameter - Inside [Max] [diameter] | 1.142 " | 0.591 - 1.26 in |
| Diameter - Inside [Min] [diameter] | 28 mm | 14 - 30 mm |
| Diameter - Inside [Min] [diameter] | 1.102 " | 0.551 - 1.22 in |
| Features | Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch | Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch, IP54 |
| For Use With/Related Products | Wires, Cable | Wires, Cable, PLUSCON CES Sealing Frames |
| Material | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS, Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
CES-LTPG Series
FRAME GROMMET ELASTOMER GRAY
| Part | Features | Diameter - Inside | Diameter - Inside [Min] [diameter] | Diameter - Inside [Max] [diameter] | Material | Material Flammability Rating | For Use With/Related Products | Color | Bushing, Grommet Type | Diameter - Inside [Max] [diameter] | Diameter - Inside [Min] [diameter] | Diameter - Inside [Max] [diameter] | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0801706 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 31 mm, 32 mm | 1.22 in | 1.26 in | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | UL94 V-0 | Cable, Wires | Gray | Frame Grommet | ||||
Phoenix Contact 0801690 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 0.669 in | 0.709 in | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | UL94 V-0 | Cable, Wires | Gray | Frame Grommet | 18 mm | 17 mm | |||
Phoenix Contact 0801705 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 1.181 " | 1.22 in | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | UL94 V-0 | Cable, Wires | Gray | Frame Grommet | 30 mm | 31 mm | |||
Phoenix Contact 0801697 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 0.906 in | 0.945 in | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | UL94 V-0 | Cable, Wires | Gray | Frame Grommet | 24 mm | 23 mm | |||
Phoenix Contact 0801698 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 0.945 " | 0.984 " | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | UL94 V-0 | Cable, Wires | Gray | Frame Grommet | 24 mm | 25 mm | |||
Phoenix Contact 0801699 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 0.984 " | 1.024 in | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | UL94 V-0 | Cable, Wires | Gray | Frame Grommet | 25 mm | 26 mm | |||
Phoenix Contact 0801691 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 0.709 " | 0.748 in | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | UL94 V-0 | Cable, Wires | Gray | Frame Grommet | 18 mm | 19 mm | |||
Phoenix Contact 0801687 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 0.551 in | 0.591 in | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | UL94 V-0 | Cable, Wires | Gray | Frame Grommet | 14 mm | 15 mm | |||
Phoenix Contact 0801702 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 1.102 " | 1.142 " | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | UL94 V-0 | Cable, Wires | Gray | Frame Grommet | 28 mm | 29 mm | |||
Phoenix Contact 0801693 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 0.787 " | 0.827 " | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | UL94 V-0 | Cable, Wires | Gray | Frame Grommet | 20 mm | 21 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.39 | |
Description
General part information
CES-LTPG Series
Frame Grommet 1.102" ~ 1.142" (28.00mm ~ 29.00mm) Gray
