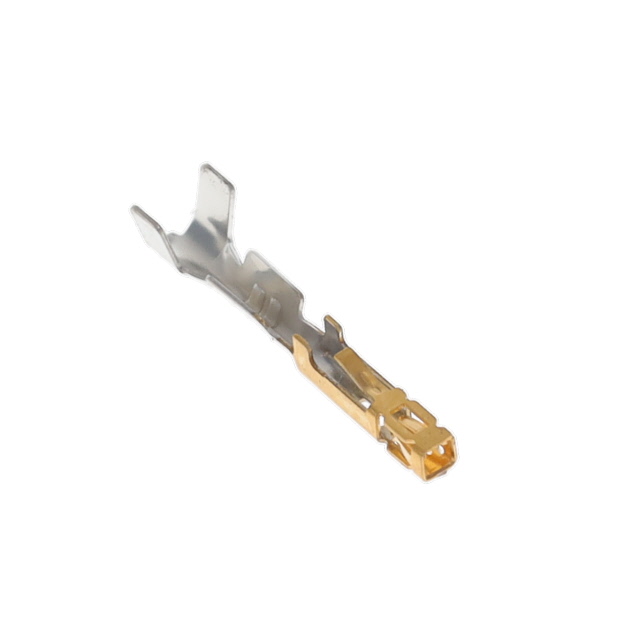

CC81R-2426-01-S
ActiveSamtec Inc.
CONN SOCKET 24-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
CC81R-2426-01-S
ActiveSamtec Inc.
CONN SOCKET 24-26AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CC81R-2426-01-S |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.28 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 2500 | $ 0.15 | |||
| Tape & Reel (TR) | 17000 | $ 0.12 | ||
| 34000 | $ 0.12 | |||
| 51000 | $ 0.11 | |||
| 85000 | $ 0.11 | |||
Description
General part information
CC81R-2426 Series
Socket Contact Gold 24-26 AWG Crimp Stamped
