2-1418469-1

Active

TE Connectivity AMP Connectors

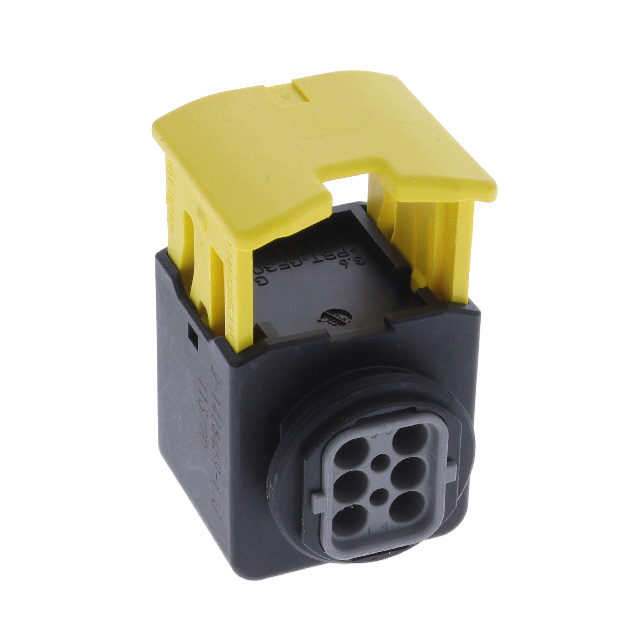

CONN RCPT HSG 6POS 4.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 4.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1418469-1	1418469 Series

Color	Gray	Gray, Blue
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Slide-On	Slide-On
Features	Sealed	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	6
Number of Rows	2	2
Operating Temperature [Max]	140 °C	140 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	4 mm	4 mm
Pitch [x]	0.157 in	0.157 in
Row Spacing [Max]	0.236 in	0.236 in
Row Spacing [Max]	6 mm	6 mm

CONN RCPT HSG 6POS 4.00MM

Part	Mounting Type	Pitch [x]	Pitch [x]	Insulation Material	Contact Type	Number of Positions	Features	Contact Termination	Color	Connector Type	Row Spacing [Max]	Row Spacing [Max]	Note	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type
TE Connectivity AMP Connectors 2-1418469-1	Free Hanging (In-Line)	4 mm	0.157 in	Polybutylene Terephthalate (PBT), Glass Filled	Female Socket	6	Sealed	Crimp	Gray	Receptacle	0.236 in	6 mm	Contacts Not Included	2	140 °C	-40 °C	Slide-On
TE Connectivity AMP Connectors 4-1418469-1	Free Hanging (In-Line)	4 mm	0.157 in	Polybutylene Terephthalate (PBT), Glass Filled	Female Socket	6	Sealed	Crimp	Blue	Receptacle	0.236 in	6 mm	Contacts Not Included	2	140 °C	-40 °C	Slide-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Gray 0.157" (4.00mm)
