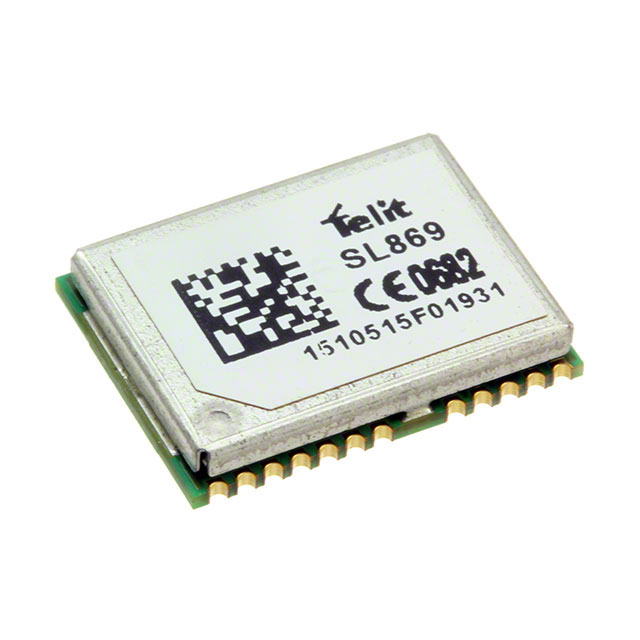

SL869GNS115T001

Obsolete

Telit Cinterion

RF RCVR GPS/GLONASS/GNSS 24LCC

Search across all available documentation for this part.

Obsolete

Telit Cinterion

RF RCVR GPS/GLONASS/GNSS 24LCC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Jupiter RF Receiver GLONASS, GNSS, GPS -162dBm On-Board, Chip 24-LCC (16x12.2)

Technical documentation and resources

Specification	SL869GNS115T001	SL869 Series

Antenna Connector	On-Board, Chip	On-Board, Chip, PCB, Surface Mount
Applications	General Purpose	General Purpose
Current - Receiving	42 mA	42 mA
Data Interface	USB, UART, Serial	USB, UART, Serial, I2C
Features	USB Interface	USB Interface
Modulation or Protocol	GNSS, GLONASS, GPS	GNSS, GLONASS, GPS
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	24-SMD Module	24-SMD Module
Sensitivity	-162 dBm	-162 dBm
Supplier Device Package	24-LCC (16x12.2)	24-LCC (16x12.2)
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Data Interface	Package / Case	Antenna Connector	Supplier Device Package	Mounting Type	Features	Modulation or Protocol	Current - Receiving	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity
Telit Cinterion SL869GNS115T001	General Purpose	85 °C	-40 °C	Serial, UART, USB	24-SMD Module	Chip, On-Board	24-LCC (16x12.2)	Surface Mount	USB Interface	GLONASS, GNSS, GPS	42 mA	3.6 V	3 V	-162 dBm
Telit Cinterion SL869GNS315R002	General Purpose	85 °C	-40 °C	I2C, UART	24-SMD Module	PCB, Surface Mount	24-LCC (16x12.2)	Surface Mount		GLONASS, GNSS, GPS	42 mA	3.6 V	3 V	-162 dBm
