333-022-559-802

Active

EDAC Inc.

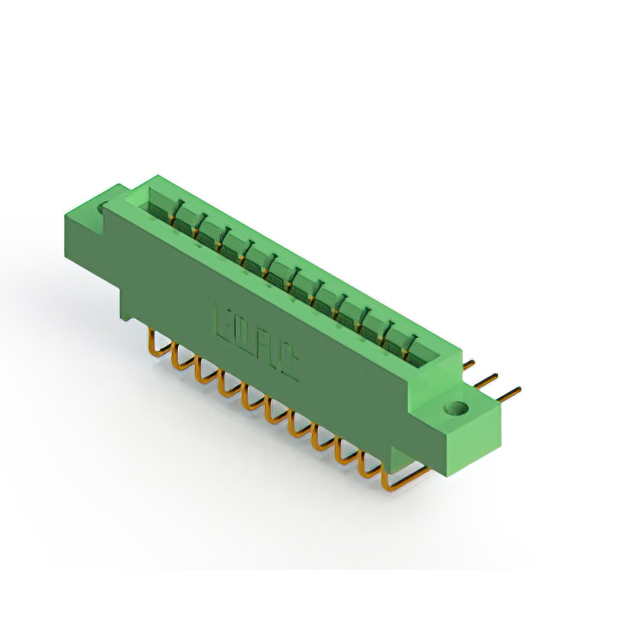

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

333-022-559-802

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-022-559-802

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	22 positions
Number of Positions/Bay/Row [custom]	11
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

333-022 Series

...

Part	Material - Insulation	Read Out	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Contact Material	Termination	Color	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Type	Number of Rows	Gender	Number of Positions	Number of Positions/Bay/Row [custom]	Contact Finish	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features	Flange Feature	Flange Feature
EDAC Inc. 333-022-544-101	Polyester Thermoplastic	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C	1	Copper Alloy	Wire Wrap	Green	10 Áin	0.25 Ám	0.156 in	3.96 mm	Cantilever	1	Female	22 positions	22	Gold
EDAC Inc. 333-022-523-108	Polyester Thermoplastic	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C	1	Copper Alloy	Solder	Green	10 Áin	0.25 Ám	0.156 in	3.96 mm	Cantilever	1	Female	22 positions	22	Gold	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 333-022-560-204	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	-40 °C	105 ░C	2	Copper Alloy	Solder	Green	10 Áin	0.25 Ám	0.156 in	3.96 mm	Cantilever	2	Female	22 positions	11	Gold	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in	Card Extender
EDAC Inc. 333-022-524-103	Polyester Thermoplastic	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C	1	Copper Alloy	Solder	Green	10 Áin	0.25 Ám	0.156 in	3.96 mm	Cantilever	1	Female	22 positions	22	Gold	Floating Bobbin Flush Mount	2.95 mm	0.116 in
EDAC Inc. 333-022-523-201	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C	2	Copper Alloy	Solder	Green	10 Áin	0.25 Ám	0.156 in	3.96 mm	Cantilever	2	Female	22 positions	11	Gold
EDAC Inc. 333-022-559-802	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	-40 °C	105 ░C	2	Copper Alloy	Solder	Green	10 Áin	0.25 Ám	0.156 in	3.96 mm	Cantilever	2	Female	22 positions	11	Gold					3.25 mm	0.128 in
EDAC Inc. 333-022-523-612	Polyester Thermoplastic	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C	1	Copper Alloy	Solder	Green	10 Áin	0.25 Ám	0.156 in	3.96 mm	Cantilever	1	Female	22 positions	22	Gold	Side Mount Opening Unthreaded				3.25 mm	0.128 in
EDAC Inc. 333-022-500-201	Diallyl Phthalate (DAP)	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C	2	Copper Alloy	Solder Eyelet(s)	Green	10 Áin	0.25 Ám	0.156 in	3.96 mm	Cantilever	2	Female	22 positions	11	Gold
EDAC Inc. 333-022-500-102	Diallyl Phthalate (DAP)	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C	1	Copper Alloy	Solder Eyelet(s)	Green	10 Áin	0.25 Ám	0.156 in	3.96 mm	Cantilever	1	Female	22 positions	22	Gold	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 333-022-520-808	Polyester Thermoplastic	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C	2	Copper Alloy	Solder	Green	10 Áin	0.25 Ám	0.156 in	3.96 mm	Cantilever	2	Female	22 positions	11	Gold	4-40 Threaded Insert Top Mount Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 8.62
Newark	Each	25	$ 9.06
		50	$ 8.85
		100	$ 8.42
		250	$ 8.21
		500	$ 7.92

Description

General part information

333-022 Series

22 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
