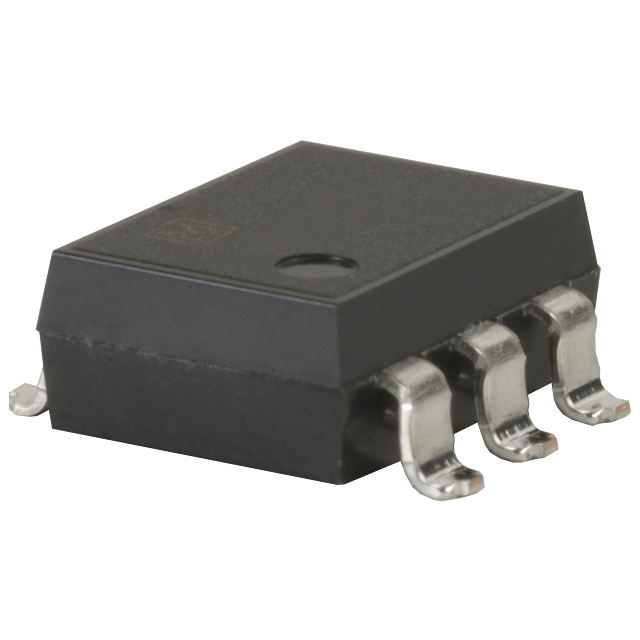

AQV112KLA
ActivePanasonic Electric Works
SSR RELAY SPST-NO 500MA 0-60V
Deep-Dive with AI
Search across all available documentation for this part.
AQV112KLA
ActivePanasonic Electric Works
SSR RELAY SPST-NO 500MA 0-60V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AQV112KLA |
|---|---|
| Load Current | 500 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 2 Ohm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, Current Limited |
| Package / Case | 7.62 mm |
| Package / Case | 0.3 in |
| Package / Case | 6-SMD |
| Supplier Device Package | 6-SMD |
| Termination Style | Gull Wing |
| Voltage - Input | 1.35 VDC |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.91 | |
| 10 | $ 6.48 | |||
| 25 | $ 5.76 | |||
| 50 | $ 5.47 | |||
| 100 | $ 5.18 | |||
| 250 | $ 4.61 | |||
| 500 | $ 4.32 | |||
| 1000 | $ 4.03 | |||
Description
General part information
AQV112 Series
Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
