6791315343F

Active

DIALIGHT

LED PANEL MOUNT INDICATOR UNI-COLOR ORANGE 605NM 2000MCD 2-PIN

Search across all available documentation for this part.

Active

DIALIGHT

LED PANEL MOUNT INDICATOR UNI-COLOR ORANGE 605NM 2000MCD 2-PIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6791315343F	6791315 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Yellow	Yellow, Orange
Lens Size [diameter]	6 mm	6 mm
Lens Style	Round with Domed Top	Round with Domed Top
Millicandela Rating	1570 mcd	1570 - 2000 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.35 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	30 °
Voltage	24 V	12 - 24 V
Wavelength - Peak	-	605 nm

LED PANEL MOUNT INDICATOR UNI-COLOR ORANGE 605NM 2000MCD 2-PIN

Part	Type	Panel Cutout Shape	Ratings	Lamp Color	Ingress Protection	Lens Style	Millicandela Rating	Voltage	Current	Lens Size [diameter]	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Viewing Angle	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Wavelength - Peak
DIALIGHT 6791315343F	LED	Round	DC	Yellow	IP66, NEMA 4X	Round with Domed Top	1570 mcd	24 V	30 mA	6 mm	0.37 in	9.4 mm
DIALIGHT 6791315333F	LED	Round	DC	Orange	IP66, NEMA 4X	Round with Domed Top	2000 mcd	12 V	30 mA	6 mm			30 °	0.37 in	9.35 mm	605 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

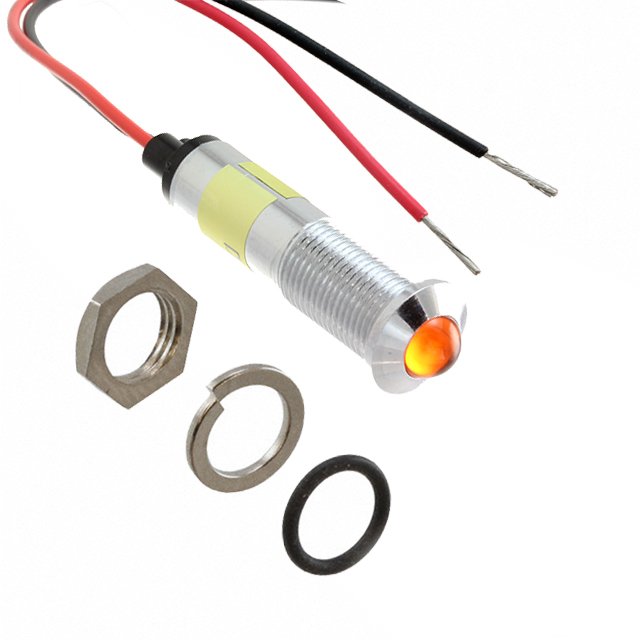

LED Panel Indicator Yellow 24V 30mA Wire Leads - 6" (152.40mm)
