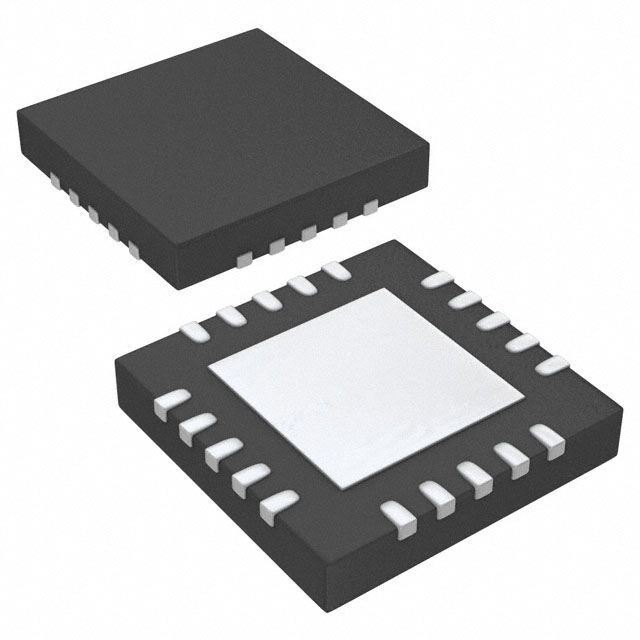

TPA6130A2RTJTG4

Active

Texas Instruments

138-MW, STEREO, ANALOG INPUT HEADPHONE AMPLIFIER WITH I2C CONTROL INTERFACE 20-QFN -40 TO 85

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TPA6130A2RTJTG4

Active

Texas Instruments

138-MW, STEREO, ANALOG INPUT HEADPHONE AMPLIFIER WITH I2C CONTROL INTERFACE 20-QFN -40 TO 85

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TPA6130A2RTJTG4	TPA6130 Series

Features	Depop, Volume Control, Short-Circuit and Thermal Protection, Shutdown, Differential Inputs, Mute, I2C	Depop, Volume Control, Short-Circuit and Thermal Protection, Shutdown, Differential Inputs, Mute, I2C
Max Output Power x Channels @ Load [custom]	290 mW	290 mW
Max Output Power x Channels @ Load [custom]	138 mW	138 mW
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Headphones, 2-Channel (Stereo)	Headphones, 2-Channel (Stereo)
Package / Case	20-WFQFN Exposed Pad	20-WFQFN Exposed Pad, DSBGA, 16-UFBGA
Supplier Device Package	20-QFN (4x4)	20-QFN (4x4), 16-DSBGA
Supplier Device Package	-	2.24
Supplier Device Package	-	2.16
Type	Class AB	Class AB
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	2.5 V	2.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 1.08
		1250	$ 0.90
		2500	$ 0.83
		6250	$ 0.80
		12500	$ 0.77
Mouser Electronics	N/A	1	$ 1.82
		10	$ 1.63
		100	$ 1.38
		250	$ 1.16
		500	$ 1.07
		1000	$ 0.86
		2500	$ 0.83
		5000	$ 0.81
		10000	$ 0.80

TPA6130 Series

138-MW, STEREO, ANALOG INPUT HEADPHONE AMPLIFIER WITH I2C CONTROL INTERFACE 20-QFN -40 TO 85

Part	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load [custom]	Type	Supplier Device Package	Features	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Supplier Device Package [x]	Supplier Device Package [y]
Texas Instruments TPA6130A2RTJTG4 Amplifier IC Headphones, 2-Channel (Stereo) Class AB 20-QFN (4x4)	290 mW	138 mW	Class AB	20-QFN (4x4)	Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control	20-WFQFN Exposed Pad	85 °C	-40 °C	Surface Mount	2.5 V	5.5 V	Headphones, 2-Channel (Stereo)
Texas Instruments TPA6130A2RTJT The TPA6130A2 is a stereo DirectPath™ headphone amplifier with I2C digital volume control. The TPA6130A2 has minimal quiescent current consumption, with a typical IDDof 4 mA, making it optimal for portable applications. The I2C control allows maximum flexibility with a 64 step audio taper volume control, channel independent enables and mutes, and the ability to configure the outputs into stereo, dual mono, or a single receiver speaker BTL amplifier that drives 300 mW of power into 16 Ω loads. The TPA6130A2 is a high fidelity amplifier with an SNR of 98 dB. A PSRR greater than 100 dB enables direct-to-battery connections without compromising the listening experience. The output noise of 9 µVrms (typicalA-weighted) provides a minimal noise background during periods of silence. Configurable differential inputs and high CMRR allow for maximum noise rejection in the noisy environment of a mobile device. TPA6130A2 packaging includes a 2 by 2 mm chip-scale package, and a 4 by 4 mm QFN package. The TPA6130A2 is a stereo DirectPath™ headphone amplifier with I2C digital volume control. The TPA6130A2 has minimal quiescent current consumption, with a typical IDDof 4 mA, making it optimal for portable applications. The I2C control allows maximum flexibility with a 64 step audio taper volume control, channel independent enables and mutes, and the ability to configure the outputs into stereo, dual mono, or a single receiver speaker BTL amplifier that drives 300 mW of power into 16 Ω loads. The TPA6130A2 is a high fidelity amplifier with an SNR of 98 dB. A PSRR greater than 100 dB enables direct-to-battery connections without compromising the listening experience. The output noise of 9 µVrms (typicalA-weighted) provides a minimal noise background during periods of silence. Configurable differential inputs and high CMRR allow for maximum noise rejection in the noisy environment of a mobile device. TPA6130A2 packaging includes a 2 by 2 mm chip-scale package, and a 4 by 4 mm QFN package.	290 mW	138 mW	Class AB	20-QFN (4x4)	Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control	20-WFQFN Exposed Pad	85 °C	-40 °C	Surface Mount	2.5 V	5.5 V	Headphones, 2-Channel (Stereo)
Texas Instruments TPA6130A2RTJR The TPA6130A2 is a stereo DirectPath™ headphone amplifier with I2C digital volume control. The TPA6130A2 has minimal quiescent current consumption, with a typical IDDof 4 mA, making it optimal for portable applications. The I2C control allows maximum flexibility with a 64 step audio taper volume control, channel independent enables and mutes, and the ability to configure the outputs into stereo, dual mono, or a single receiver speaker BTL amplifier that drives 300 mW of power into 16 Ω loads. The TPA6130A2 is a high fidelity amplifier with an SNR of 98 dB. A PSRR greater than 100 dB enables direct-to-battery connections without compromising the listening experience. The output noise of 9 µVrms (typicalA-weighted) provides a minimal noise background during periods of silence. Configurable differential inputs and high CMRR allow for maximum noise rejection in the noisy environment of a mobile device. TPA6130A2 packaging includes a 2 by 2 mm chip-scale package, and a 4 by 4 mm QFN package. The TPA6130A2 is a stereo DirectPath™ headphone amplifier with I2C digital volume control. The TPA6130A2 has minimal quiescent current consumption, with a typical IDDof 4 mA, making it optimal for portable applications. The I2C control allows maximum flexibility with a 64 step audio taper volume control, channel independent enables and mutes, and the ability to configure the outputs into stereo, dual mono, or a single receiver speaker BTL amplifier that drives 300 mW of power into 16 Ω loads. The TPA6130A2 is a high fidelity amplifier with an SNR of 98 dB. A PSRR greater than 100 dB enables direct-to-battery connections without compromising the listening experience. The output noise of 9 µVrms (typicalA-weighted) provides a minimal noise background during periods of silence. Configurable differential inputs and high CMRR allow for maximum noise rejection in the noisy environment of a mobile device. TPA6130A2 packaging includes a 2 by 2 mm chip-scale package, and a 4 by 4 mm QFN package.	290 mW	138 mW	Class AB	20-QFN (4x4)	Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control	20-WFQFN Exposed Pad	85 °C	-40 °C	Surface Mount	2.5 V	5.5 V	Headphones, 2-Channel (Stereo)
Texas Instruments TPA6130A2RTJRG4 Amplifier IC Headphones, 2-Channel (Stereo) Class AB 20-QFN (4x4)	290 mW	138 mW	Class AB	20-QFN (4x4)	Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control	20-WFQFN Exposed Pad	85 °C	-40 °C	Surface Mount	2.5 V	5.5 V	Headphones, 2-Channel (Stereo)
Texas Instruments TPA6130A2YZHR The TPA6130A2 is a stereo DirectPath™ headphone amplifier with I2C digital volume control. The TPA6130A2 has minimal quiescent current consumption, with a typical IDDof 4 mA, making it optimal for portable applications. The I2C control allows maximum flexibility with a 64 step audio taper volume control, channel independent enables and mutes, and the ability to configure the outputs into stereo, dual mono, or a single receiver speaker BTL amplifier that drives 300 mW of power into 16 Ω loads. The TPA6130A2 is a high fidelity amplifier with an SNR of 98 dB. A PSRR greater than 100 dB enables direct-to-battery connections without compromising the listening experience. The output noise of 9 µVrms (typicalA-weighted) provides a minimal noise background during periods of silence. Configurable differential inputs and high CMRR allow for maximum noise rejection in the noisy environment of a mobile device. TPA6130A2 packaging includes a 2 by 2 mm chip-scale package, and a 4 by 4 mm QFN package. The TPA6130A2 is a stereo DirectPath™ headphone amplifier with I2C digital volume control. The TPA6130A2 has minimal quiescent current consumption, with a typical IDDof 4 mA, making it optimal for portable applications. The I2C control allows maximum flexibility with a 64 step audio taper volume control, channel independent enables and mutes, and the ability to configure the outputs into stereo, dual mono, or a single receiver speaker BTL amplifier that drives 300 mW of power into 16 Ω loads. The TPA6130A2 is a high fidelity amplifier with an SNR of 98 dB. A PSRR greater than 100 dB enables direct-to-battery connections without compromising the listening experience. The output noise of 9 µVrms (typicalA-weighted) provides a minimal noise background during periods of silence. Configurable differential inputs and high CMRR allow for maximum noise rejection in the noisy environment of a mobile device. TPA6130A2 packaging includes a 2 by 2 mm chip-scale package, and a 4 by 4 mm QFN package.	290 mW	138 mW	Class AB	16-DSBGA	Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control	16-UFBGA, DSBGA	85 °C	-40 °C	Surface Mount	2.5 V	5.5 V	Headphones, 2-Channel (Stereo)	2.24	2.16
Texas Instruments TPA6130A2YZHT The TPA6130A2 is a stereo DirectPath™ headphone amplifier with I2C digital volume control. The TPA6130A2 has minimal quiescent current consumption, with a typical IDDof 4 mA, making it optimal for portable applications. The I2C control allows maximum flexibility with a 64 step audio taper volume control, channel independent enables and mutes, and the ability to configure the outputs into stereo, dual mono, or a single receiver speaker BTL amplifier that drives 300 mW of power into 16 Ω loads. The TPA6130A2 is a high fidelity amplifier with an SNR of 98 dB. A PSRR greater than 100 dB enables direct-to-battery connections without compromising the listening experience. The output noise of 9 µVrms (typicalA-weighted) provides a minimal noise background during periods of silence. Configurable differential inputs and high CMRR allow for maximum noise rejection in the noisy environment of a mobile device. TPA6130A2 packaging includes a 2 by 2 mm chip-scale package, and a 4 by 4 mm QFN package. The TPA6130A2 is a stereo DirectPath™ headphone amplifier with I2C digital volume control. The TPA6130A2 has minimal quiescent current consumption, with a typical IDDof 4 mA, making it optimal for portable applications. The I2C control allows maximum flexibility with a 64 step audio taper volume control, channel independent enables and mutes, and the ability to configure the outputs into stereo, dual mono, or a single receiver speaker BTL amplifier that drives 300 mW of power into 16 Ω loads. The TPA6130A2 is a high fidelity amplifier with an SNR of 98 dB. A PSRR greater than 100 dB enables direct-to-battery connections without compromising the listening experience. The output noise of 9 µVrms (typicalA-weighted) provides a minimal noise background during periods of silence. Configurable differential inputs and high CMRR allow for maximum noise rejection in the noisy environment of a mobile device. TPA6130A2 packaging includes a 2 by 2 mm chip-scale package, and a 4 by 4 mm QFN package.	290 mW	138 mW	Class AB	16-DSBGA	Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection, Shutdown, Volume Control	16-UFBGA, DSBGA	85 °C	-40 °C	Surface Mount	2.5 V	5.5 V	Headphones, 2-Channel (Stereo)	2.24	2.16

Description

General part information

TPA6130 Series

Amplifier IC Headphones, 2-Channel (Stereo) Class AB 20-QFN (4x4)
