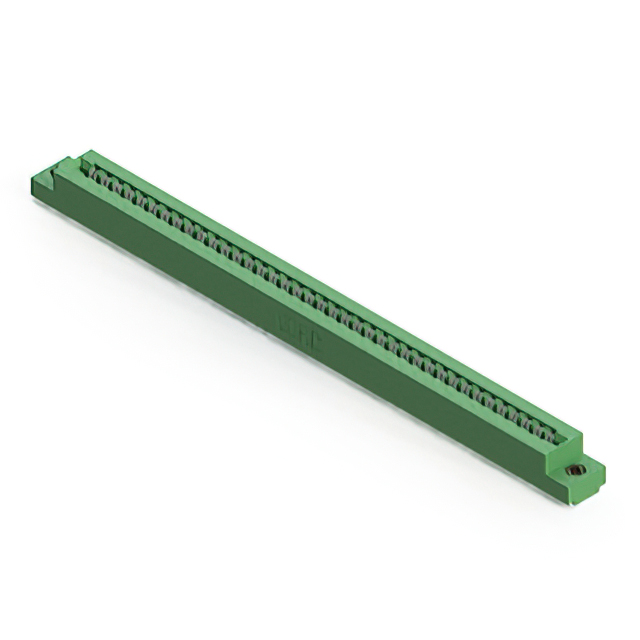

807-039-454-107

Active

EDAC Inc.

CONN EDGE DUAL FMALE 78POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-039-454-107

Active

EDAC Inc.

CONN EDGE DUAL FMALE 78POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-039-454-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	78
Number of Positions/Bay/Row [custom]	39
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

807-039 Series

...

Part	Number of Positions/Bay/Row [custom]	Gender	Mounting Type	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Flange Feature	Number of Rows	Color	Pitch [x]	Pitch [x]	Contact Material	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Positions	Read Out	Material - Insulation	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 807-039-454-107	39	Female	Through Hole Right Angle	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	2	Green	0.156 in	3.96 mm	Copper Alloy	Tin	125 °C	-40 °C	Semi Bellows	78	Dual	Diallyl Phthalate (DAP)	Solder
EDAC Inc. 807-039-531-108	39	Female	Through Hole	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	1	Green	0.156 in	3.96 mm	Copper Alloy	Gold	125 °C	-40 °C	Semi Bellows	39	Single	Diallyl Phthalate (DAP)	Solder	10 Áin	0.25 Ám
EDAC Inc. 807-039-559-102	39	Female	Through Hole Right Angle	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	1	Green	0.156 in	3.96 mm	Copper Alloy	Gold	125 °C	-40 °C	Semi Bellows	39	Single	Diallyl Phthalate (DAP)	Solder	10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 807-039-541-108	39	Female	Through Hole	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	2	Green	0.156 in	3.96 mm	Copper Alloy	Gold	125 °C	-40 °C	Semi Bellows	78	Dual	Diallyl Phthalate (DAP)	Wire Wrap	10 Áin	0.25 Ám
EDAC Inc. 807-039-521-107	39	Female	Through Hole	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	2	Green	0.156 in	3.96 mm	Copper Alloy	Gold	125 °C	-40 °C	Semi Bellows	78	Dual	Diallyl Phthalate (DAP)	Solder	10 Áin	0.25 Ám
EDAC Inc. 807-039-441-107	39	Female	Through Hole	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	2	Green	0.156 in	3.96 mm	Copper Alloy	Tin	125 °C	-40 °C	Semi Bellows	78	Dual	Diallyl Phthalate (DAP)	Wire Wrap
EDAC Inc. 807-039-505-104	39	Female	Through Hole	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	1	Green	0.156 in	3.96 mm	Copper Alloy	Gold	125 °C	-40 °C	Semi Bellows	39	Single	Diallyl Phthalate (DAP)	Solder Eyelet(s)	10 Áin	0.25 Ám	3.96 mm	0.156 in
EDAC Inc. 807-039-505-102	39	Female	Through Hole	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	1	Green	0.156 in	3.96 mm	Copper Alloy	Gold	125 °C	-40 °C	Semi Bellows	39	Single	Diallyl Phthalate (DAP)	Solder Eyelet(s)	10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 807-039-401-101	39	Female	Through Hole	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge		2	Green	0.156 in	3.96 mm	Copper Alloy	Tin	125 °C	-40 °C	Semi Bellows	78	Dual	Diallyl Phthalate (DAP)	Solder Eyelet(s)
EDAC Inc. 807-039-531-107	39	Female	Through Hole	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Flush Mount M3 Threaded Insert Top Opening	1	Green	0.156 in	3.96 mm	Copper Alloy	Gold	125 °C	-40 °C	Semi Bellows	39	Single	Diallyl Phthalate (DAP)	Solder	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 257.52

Description

General part information

807-039 Series

78 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
