627-M09-222-LT2

Active

EDAC Inc.

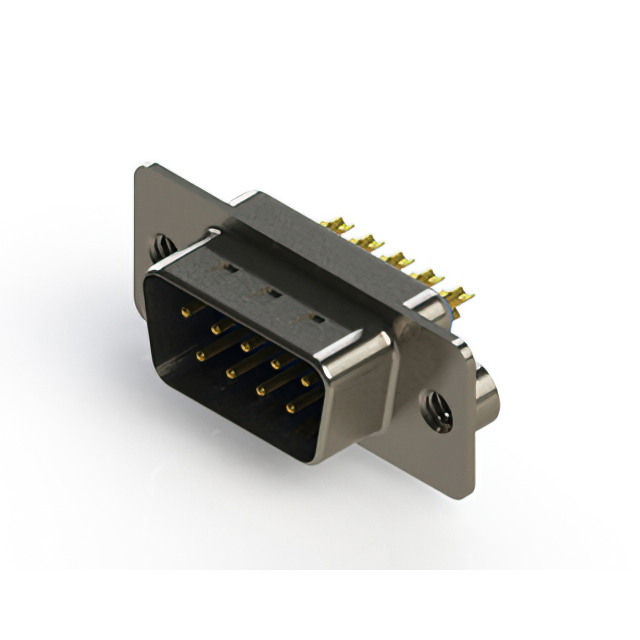

627M SERIES VERTICAL D-SUB PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-M09-222-LT2

Active

EDAC Inc.

627M SERIES VERTICAL D-SUB PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-M09-222-LT2

Color	Blue
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1

627-M09 Series

...

Part	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Current Rating (Amps)	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Connector Style	Mounting Type	Contact Finish	Contact Type	Features	Connector Type	Contact Material	Color	Flange Feature	Number of Rows	Material Flammability Rating	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 627-M09-220-GN6	Polyamide (PA6T) Nylon 6T	DE E	1	Solder	5 A	9	-55 °C	125 °C	Flash	D-Sub	Through Hole	Gold	Signal	Board Lock Grounding Indents Shielded	Male Pins Plug	Copper Alloy	Green	4-40 Board Side	2	UL94 V-0	Nickel Plated Steel
EDAC Inc. 627-M09-620-LN5	Polyamide (PA6T) Nylon 6T	DE E	1	Solder	5 A	9	-55 °C	125 °C		D-Sub	Through Hole	Gold	Signal	Board Lock Grounding Indents Shielded	Male Pins Plug	Copper Alloy	Blue	4-40 Board Side	2	UL94 V-0	Nickel Plated Steel	0.76 Ám	30 Áin
EDAC Inc. 627-M09-323-BT3	Polyamide (PA6T) Nylon 6T	DE E	1	Solder	5 A	9	-55 °C	125 °C		D-Sub	Through Hole	Gold	Signal	Grounding Indents Shielded	Male Pins Plug	Copper Alloy	Black	4-40 Board Side	2	UL94 V-0		0.38 µm	15 µin
EDAC Inc. 627-M09-320-BN3	Polyamide (PA6T) Nylon 6T	DE E	1	Solder	5 A	9	-55 °C	125 °C		D-Sub	Through Hole	Gold	Signal	Grounding Indents Shielded	Male Pins Plug	Copper Alloy	Black	4-40 Board Side	2	UL94 V-0	Nickel Plated Steel	0.38 µm	15 µin
EDAC Inc. 627-M09-620-LN1	Polyamide (PA6T) Nylon 6T	DE E	1	Solder	5 A	9	-55 °C	125 °C		D-Sub	Through Hole	Gold	Signal	Grounding Indents Shielded	Male Pins Plug	Copper Alloy	Blue	4-40 Board Side	2	UL94 V-0	Nickel Plated Steel	0.76 Ám	30 Áin
EDAC Inc. 627-M09-222-LT2	Polyamide (PA6T) Nylon 6T	DE E	1		5 A	9	-55 °C	125 °C	Flash	D-Sub	Free Hanging (In-Line)	Gold	Signal	Grounding Indents Shielded	Male Pins Plug	Copper Alloy	Blue	4-40 Board Side	2	UL94 V-0
EDAC Inc. 627-M09-623-BT6	Polyamide (PA6T) Nylon 6T	DE E	1	Solder	5 A	9	-55 °C	125 °C		D-Sub	Through Hole	Gold	Signal	Board Lock Grounding Indents Shielded	Male Pins Plug	Copper Alloy	Black	4-40 Board Side	2	UL94 V-0		0.76 Ám	30 Áin
EDAC Inc. 627-M09-323-GT6	Polyamide (PA6T) Nylon 6T	DE E	1	Solder	5 A	9	-55 °C	125 °C		D-Sub	Through Hole	Gold	Signal	Board Lock Grounding Indents Shielded	Male Pins Plug	Copper Alloy	Green	4-40 Board Side	2	UL94 V-0		0.38 µm	15 µin
EDAC Inc. 627-M09-220-GN1	Polyamide (PA6T) Nylon 6T	DE E	1	Solder	5 A	9	-55 °C	125 °C	Flash	D-Sub	Through Hole	Gold	Signal	Grounding Indents Shielded	Male Pins Plug	Copper Alloy	Green	4-40 Board Side	2	UL94 V-0	Nickel Plated Steel
EDAC Inc. 627-M09-223-LT4	Polyamide (PA6T) Nylon 6T	DE E	1	Solder	5 A	9	-55 °C	125 °C	Flash	D-Sub	Through Hole	Gold	Signal	Grounding Indents Shielded	Male Pins Plug	Copper Alloy	Blue	4-40 Board Side	2	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 3.42

Description

General part information

627-M09 Series

9 Position D-Sub Plug, Male Pins Connector
