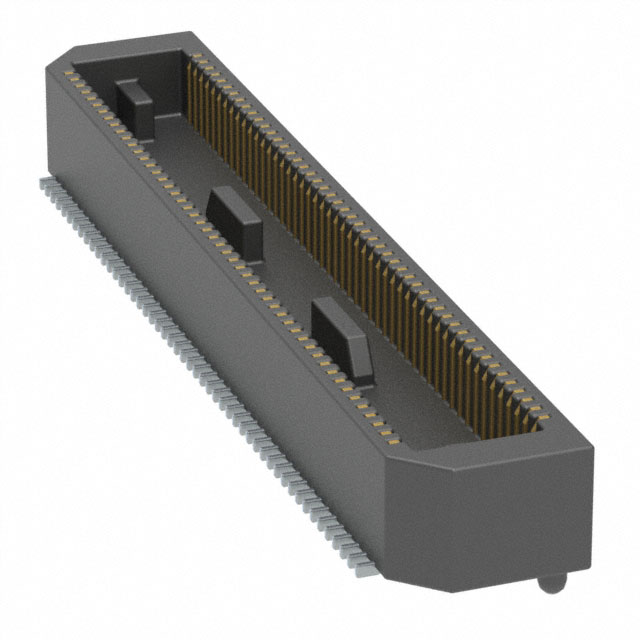

BTS-050-01-L-D-A-K

Active

Samtec Inc.

CONN SOCKET 100POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BTS-050-01-L-D-A-K

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	4.06 mm
Height Above Board	0.16 in
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Number of Positions	Mounting Type	Contact Finish	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Features	Contact Finish Thickness
Samtec Inc. BTS-050-01-H-D-A	100	Surface Mount	Gold	4.06 mm	0.16 in	0.64 mm	0.025 in	Outer Shroud Contacts Socket	2	0.76 Ám	30 Áin	5 mm	Board Guide
Samtec Inc. BTS-050-01-L-D-A-K	100	Surface Mount	Gold	4.06 mm	0.16 in	0.64 mm	0.025 in	Outer Shroud Contacts Socket	2	0.25 Ám	10 Áin	5 mm	Board Guide Pick and Place
Samtec Inc. BTS-050-01-F-D-K	100	Surface Mount	Gold	4.06 mm	0.16 in	0.64 mm	0.025 in	Outer Shroud Contacts Socket	2			5 mm	Pick and Place	Flash
Samtec Inc. BTS-050-01-F-D-A-TR	100	Surface Mount	Gold	4.06 mm	0.16 in	0.64 mm	0.025 in	Outer Shroud Contacts Socket	2			5 mm	Board Guide	Flash
Samtec Inc. BTS-050-01-F-D-EM2	100	Board Edge Straddle Mount	Gold			0.64 mm	0.025 in	Outer Shroud Contacts Socket	2					Flash
Samtec Inc. BTS-050-01-L-D	100	Surface Mount	Gold	4.06 mm	0.16 in	0.64 mm	0.025 in	Outer Shroud Contacts Socket	2	0.25 Ám	10 Áin	5 mm
