18980-5PG-522

Active

Conxall/Switchcraft

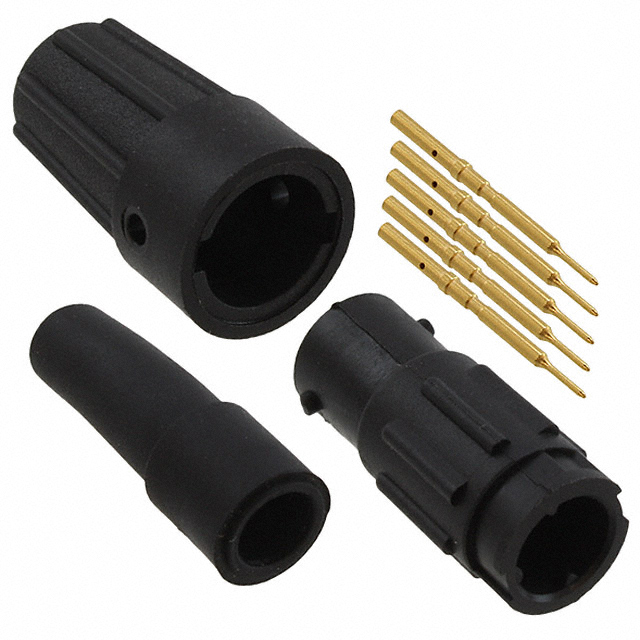

CONN RCPT MALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	18980-5PG-522

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

CONN RCPT MALE 5POS GOLD CRIMP

Part	Features	Mounting Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Shielding	Backshell Material, Plating	Current Rating (Amps)	Connector Type	Voltage Rating	Fastening Type	Contact Finish - Mating	Applications	Primary Material	Color	Contact Material	Orientation	Material Flammability Rating	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Termination
Conxall/Switchcraft 18980-5PG-522	Backshell	Free Hanging (In-Line)	5.84 mm	0.22 in	5.59 mm	0.23 in	Unshielded	Thermoplastic	4 A	Male Pins, Receptacle	600 VAC	Bayonet Lock	Gold	Data, Industrial, Instrumentation, Medical	Plastic	Black	Copper Alloy	B	UL94 HB	IP67 - Dust Tight, Waterproof	85 °C	-40 °C	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Crimp
