794378-1

Active

TE Connectivity AMP Connectors

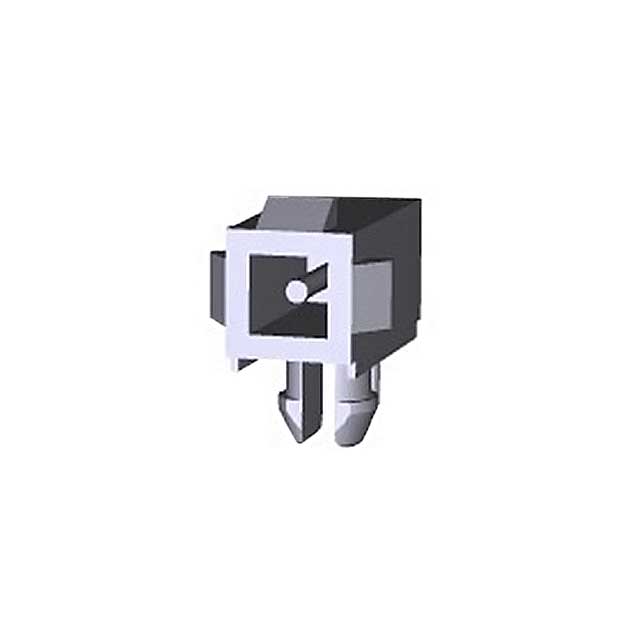

CONN HEADER R/A 1POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 1POS

Technical Specifications

Parameters and characteristics for this part

Specification	794378-1

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Post	0.145 in
Contact Length - Post	3.68 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.225 in
Insulation Height	5.72 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

CONN HEADER R/A 1POS

Part	Style	Number of Positions Loaded	Termination	Contact Shape	Contact Material	Contact Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Shrouding	Contact Finish - Post	Number of Rows	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Insulation Color	Mounting Type	Contact Length - Post	Contact Length - Post	Connector Type	Number of Positions	Material Flammability Rating
TE Connectivity AMP Connectors 794378-1	Board to Cable/Wire	All	Solder	Circular	Brass	Male Pin	Locking Ramp	30 Áin	0.76 Ám	Gold	Shrouded - 4 Wall	Tin	1	0.225 in	5.72 mm	150 Áin	3.81 Ám	Nylon, Polyamide (PA)	Natural	Through Hole, Right Angle	0.145 in	3.68 mm	Header	1	UL94 V-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 1 position

Technical documentation and resources

No documents available
