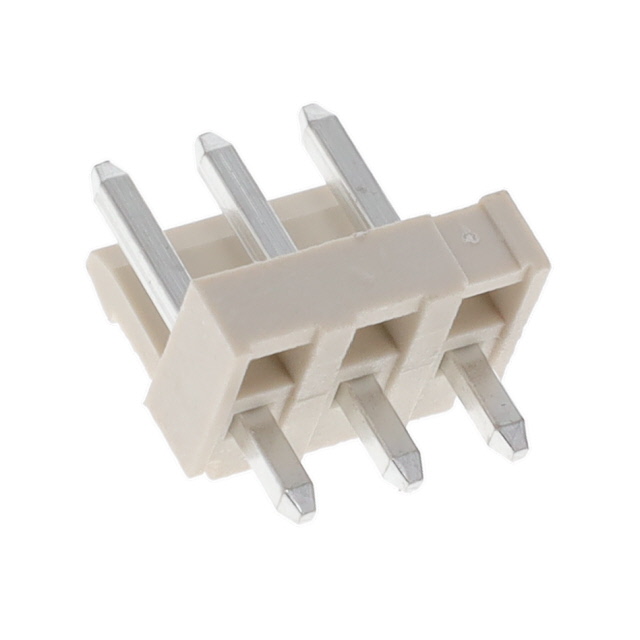

CI5203P1V00-LF

Obsolete

Cvilux USA

3 POS 3.96MM(.156) WIRE TO BOARD

Search across all available documentation for this part.

Obsolete

Cvilux USA

3 POS 3.96MM(.156) WIRE TO BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	CI5203P1V00-LF

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	120 µin
Contact Finish Thickness - Mating	3.05 Ám
Contact Finish Thickness - Post	120 Áin
Contact Finish Thickness - Post	3.05 Ám
Contact Length - Mating	7.7 mm
Contact Length - Mating	0.303 in
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.575 in
Overall Contact Length	14.6 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Rows	Contact Length - Mating	Contact Length - Mating	Voltage Rating	Pitch - Mating	Pitch - Mating	Insulation Material	Connector Type	Overall Contact Length	Overall Contact Length	Style	Current Rating (Amps)	Shrouding	Contact Material	Contact Type	Insulation Color	Fastening Type	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Insulation Height	Insulation Height	Material Flammability Rating	Mounting Type
Cvilux USA CI5203P1V00-LF	Solder	120 µin	3.05 Ám	Tin	1	7.7 mm	0.303 in	250 VAC	0.156 in	3.96 mm	Polyamide (PA46) Nylon 4/6	Header	0.575 in	14.6 mm	Board to Cable/Wire	7 A	Shrouded - 1 Wall	Brass	Male Pin	Natural	Locking Ramp	Square	120 Áin	3.05 Ám	-25 °C	105 ░C	0.146 in	3.7 mm	All	0.37 in	9.4 mm	UL94 V-0	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 3 position 0.156" (3.96mm)
