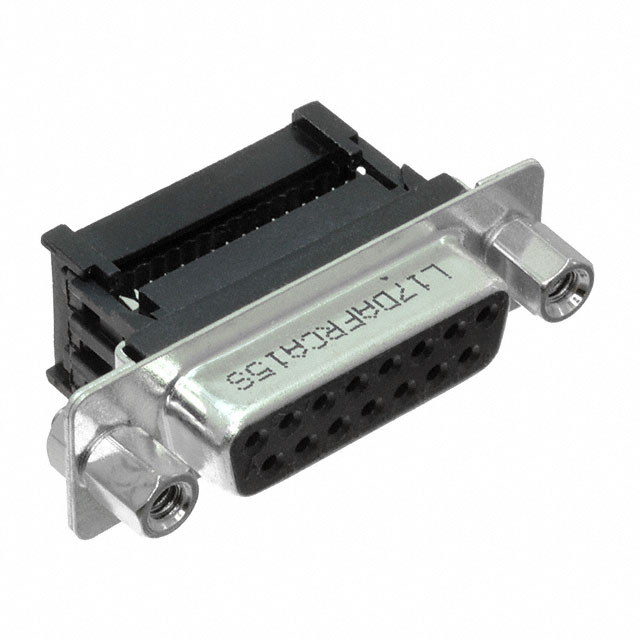

L17DAFRCA15S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 15POS IDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L17DAFRCA15S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 15POS IDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L17DAFRCA15S

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Feed Through, Strain Relief
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC
Wire Gauge	26 AWG

L17DAFRC Series

Part	Dielectric Material	Wire Gauge	Number of Positions	Termination	Material Flammability Rating	Voltage Rating	Flange Feature	Contact Finish	Contact Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Connector Type	Current Rating (Amps)	Features	Mounting Type	Shell Size, Connector Layout	Contact Finish Thickness	Connector Style	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish
Amphenol ICC (Commercial Products) L17DAFRCA15S	Thermoplastic Glass Filled	26 AWG	15	IDC Ribbon Cable	UL94 V-0	250 VDC	Female Screwlock (4-40) Mating Side	Gold	Signal	Black	105 ░C	-55 °C	Brass	Receptacle Female Sockets	3 A	Feed Through Strain Relief	Free Hanging (In-Line)	2	Flash	D-Sub	2
Amphenol ICC (Commercial Products) L17DAFRCA15SC309	Thermoplastic Glass Filled	26 AWG	15	IDC Ribbon Cable	UL94 V-0	250 VDC	Female Screwlock (4-40) Mating Side	Gold	Signal	Black	85 °C	-25 °C	Phosphor Bronze	Receptacle Female Sockets	5 A	Feed Through Strain Relief	Free Hanging (In-Line)	2		D-Sub	2	0.76 Ám	30 Áin	Nickel Plated Steel
Amphenol ICC (Commercial Products) L17DAFRCA15P	Thermoplastic Glass Filled	26 AWG	15	IDC Ribbon Cable	UL94 V-0	250 VDC	Female Screwlock (4-40) Mating Side	Gold	Signal	Black	105 ░C	-55 °C	Brass	Male Pins Plug	3 A	Feed Through Grounding Indents Strain Relief	Free Hanging (In-Line)	2	Flash	D-Sub	2
Amphenol ICC (Commercial Products) L17DAFRCA15PC309	Thermoplastic Glass Filled	26 AWG	15	IDC Ribbon Cable	UL94 V-0	250 VDC	Female Screwlock (4-40) Mating Side	Gold	Signal	Black	105 ░C	-55 °C	Brass	Male Pins Plug	3 A	Feed Through Grounding Indents Strain Relief	Free Hanging (In-Line)	2		D-Sub	2	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.67
		10	$ 4.34
		25	$ 3.91
		40	$ 3.71
		80	$ 3.44
		230	$ 3.08
		440	$ 2.88
		945	$ 2.67
		2400	$ 2.44

Description

General part information

L17DAFRC Series

15 Position D-Sub Receptacle, Female Sockets Connector
