CDCLVP110MVFR
Active1:10 LVPECL/HSTL TO LVPECL CLOCK DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
CDCLVP110MVFR
Active1:10 LVPECL/HSTL TO LVPECL CLOCK DRIVER
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CDCLVP110MVFR | CDCLVP110 Series |
|---|---|---|
| Differential - Input:Output [custom] | True | True |
| Differential - Input:Output [custom] | True | True |
| Frequency - Max [Max] | 3.5 GHz | 3.5 GHz |
| Input | HSTL, LVPECL | HSTL, LVPECL |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | LVPECL | LVPECL |

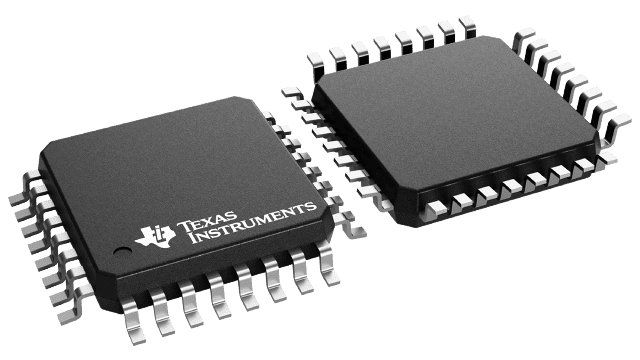

| Package / Case | 32-LQFP | 32-LQFP |
| Ratio - Input:Output [custom] | 2 | 2 |
| Ratio - Input:Output [custom] | 10 | 10 |
| Supplier Device Package | 32-LQFP (7x7) | 32-LQFP (7x7) |
| Type | Multiplexer, Fanout Buffer (Distribution) | Multiplexer, Fanout Buffer (Distribution) |
| Voltage - Supply [Max] | 3.8 V | 3.8 V |
| Voltage - Supply [Min] | 2.375 V | 2.375 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 7.51 | |
| Texas Instruments | LARGE T&R | 1 | $ 10.29 | |
| 100 | $ 8.38 | |||
| 250 | $ 6.59 | |||
| 1000 | $ 5.59 | |||
CDCLVP110 Series
1:10 LVPECL/HSTL to LVPECL clock driver
| Part | Number of Circuits | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Package / Case | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Type | Ratio - Input:Output [custom] | Ratio - Input:Output [custom] | Output | Input | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CDCLVP110VFR | 1 | 32-LQFP | 32-LQFP (7x7) | -40 °C | 85 °C | 3.5 GHz | Fanout Buffer (Distribution), Multiplexer | 2 | 10 | LVPECL | HSTL, LVPECL | 3.8 V | 2.375 V | Surface Mount | ||
Texas Instruments CDCLVP110MVFR | 1 | 32-LQFP | 32-LQFP (7x7) | -40 °C | 85 °C | 3.5 GHz | Fanout Buffer (Distribution), Multiplexer | 2 | 10 | LVPECL | HSTL, LVPECL | 3.8 V | 2.375 V | Surface Mount | ||
Texas Instruments CDCLVP110VFRG4 | 1 | 32-LQFP | 32-LQFP (7x7) | -40 °C | 85 °C | 3.5 GHz | Fanout Buffer (Distribution), Multiplexer | 2 | 10 | LVPECL | HSTL, LVPECL | 3.8 V | 2.375 V | Surface Mount | ||
Texas Instruments CDCLVP110VF | 1 | 32-LQFP | 32-LQFP (7x7) | -40 °C | 85 °C | 3.5 GHz | Fanout Buffer (Distribution), Multiplexer | 2 | 10 | LVPECL | HSTL, LVPECL | 3.8 V | 2.375 V | Surface Mount | ||
Texas Instruments CDCLVP110MVFRG4 | 1 | 32-LQFP | 32-LQFP (7x7) | -40 °C | 85 °C | 3.5 GHz | Fanout Buffer (Distribution), Multiplexer | 2 | 10 | LVPECL | HSTL, LVPECL | 3.8 V | 2.375 V | Surface Mount | ||
Texas Instruments CDCLVP110VFG4 | 1 | 32-LQFP | 32-LQFP (7x7) | -40 °C | 85 °C | 3.5 GHz | Fanout Buffer (Distribution), Multiplexer | 2 | 10 | LVPECL | HSTL, LVPECL | 3.8 V | 2.375 V | Surface Mount |
Description
General part information
CDCLVP110 Series
The CDCLVP110 clock driver distributes one differential clock pair of either LVPECL or HSTL (selectable) input, (CLK0, CLK1) to ten pairs of differential LVPECL clock (Q0, Q9) outputs with minimum skew for clock distribution. The CDCLVP110 can accept two clock sources into an input multiplexer. The CLK0 input accepts either LVECL/LVPECL input signals, while CLK1 accepts an HSTL input signal when operated under LVPECL conditions. The CDCLVP110 is specifically designed for driving 50-Ω transmission lines.
The VBB reference voltage output is used if single-ended input operation is required. In this case the VBB pin should be connected toCLK0and bypassed to GND via a 10-nF capacitor.
However, for high-speed performance up to 3.5 GHz, the differential mode is strongly recommended.
