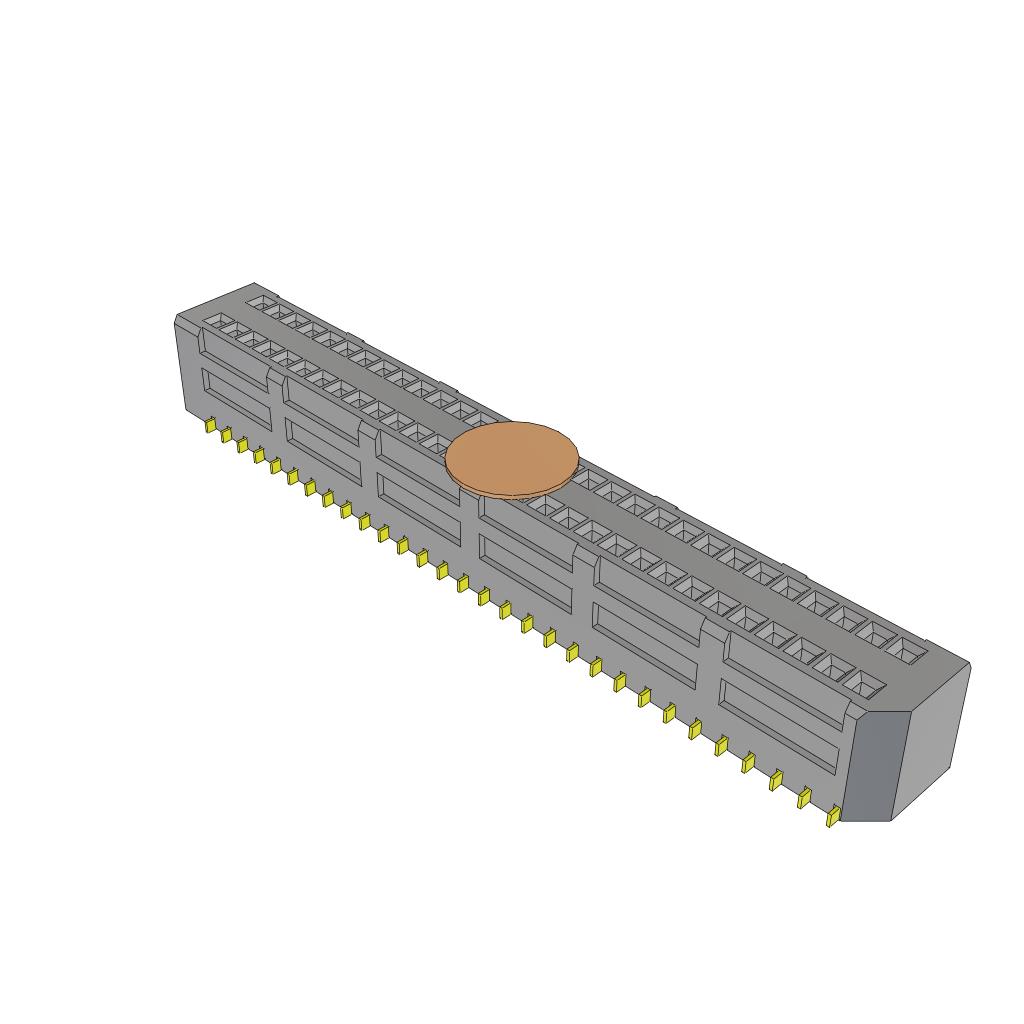

SEMS-130-02-03.0-H-D-K-TR
ActiveSamtec Inc.
0.80 MM TIGER EYE MICRO SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
SEMS-130-02-03.0-H-D-K-TR
ActiveSamtec Inc.
0.80 MM TIGER EYE MICRO SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SEMS-130-02-03.0-H-D-K-TR |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 3 µin |
| Contact Finish Thickness - Post | 0.076 µm |
| Contact Material | Beryllium Copper |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 2.6 A |
| Fastening Type | Friction Lock |
| Features | Pick and Place |
| Insulation Color | Black |
| Insulation Height | 0.177 in |
| Insulation Height | 4.5 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.031 in |
| Pitch - Mating | 0.8 mm |
| Termination | Solder |
| Voltage Rating | 235 VAC, 330 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 950 | $ 9.00 | |
Description
General part information
SEMS-130 Series
60 Position Receptacle Connector 0.031" (0.80mm) Surface Mount Gold
