Specification	MDDLN55SE

Control / Drive Type	Servo AC
Current - Output	40 A
For Use With/Related Products	MINAS A6 Series
Interface	RS-485, RS-232, USB
Motor Type	Servo
Mounting Type	Chassis Mount
Number of Motors	1
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	0 °C
Type	Module
Voltage - Load	200 V
Voltage - Supply	200 VAC
Wattage - Load	1.5 kW

MDDLN Series

Part	Control / Drive Type	Voltage - Supply	Motor Type	Wattage - Load	Mounting Type	Current - Output	Type	Voltage - Load	Number of Motors	For Use With/Related Products	Interface	Operating Temperature (Max)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
Panasonic Industrial Automation Sales MDDLN55SE	Servo AC	200 VAC	Servo	1.5 kW	Chassis Mount	40 A	Module	200 V	1	MINAS A6 Series	RS-232 RS-485 USB	55 °C
Panasonic Industrial Automation Sales MDDLN55SG	Servo AC	200 VAC	Servo	1.5 kW	Chassis Mount	40 A	Module	200 V	1	MINAS A6 Series	RS-232 RS-485 USB	55 °C
Panasonic Industrial Automation Sales MDDLN55BE	Servo AC		Servo	1.5 kW	Chassis Mount	40 A	Module	230 V	1	MINAS A6 Series	EtherCat	55 °C	230 VAC	200 VAC
Panasonic Industrial Automation Sales MDDLN45SG	Servo AC	200 VAC	Servo	1000 W	Chassis Mount	24 A	Module	200 V	1	MINAS A6 Series	RS-232 RS-485 USB	55 °C

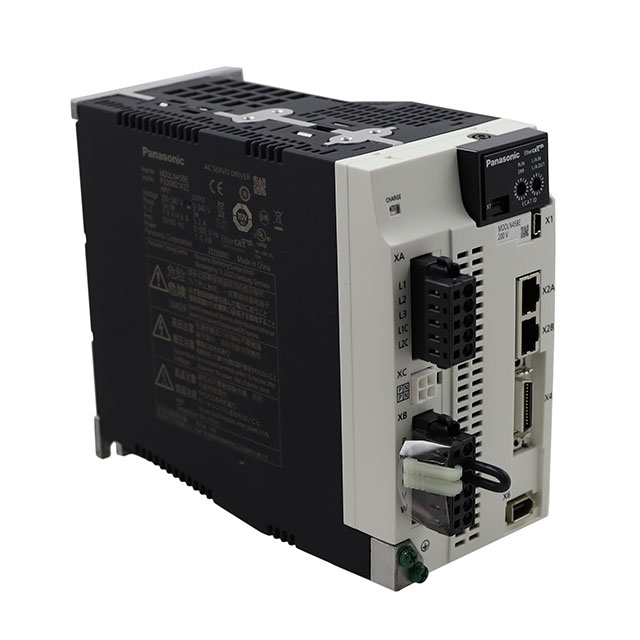

Panasonic Industrial Automation Sales MDDLN45BE	Servo AC		Servo	1000 W	Chassis Mount	24 A	Module	230 V	1	MINAS A6 Series	EtherCat	55 °C	230 VAC	200 VAC
Panasonic Industrial Automation Sales MDDLN55NE	Servo AC	200 VAC	Servo	1.5 kW	Chassis Mount	40 A	Module	200 V	1	MINAS A6 Series	RTEX	55 °C
Panasonic Industrial Automation Sales MDDLN45NE	Servo AC	200 VAC	Servo	1000 W	Chassis Mount	24 A	Module	200 V	1	MINAS A6 Series	RTEX	55 °C
Panasonic Industrial Automation Sales MDDLN45SE	Servo AC	200 VAC	Servo	1000 W	Chassis Mount	24 A	Module	200 V	1	MINAS A6 Series	RS-232 RS-485 USB	55 °C
